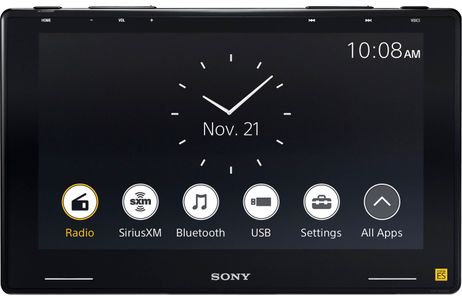

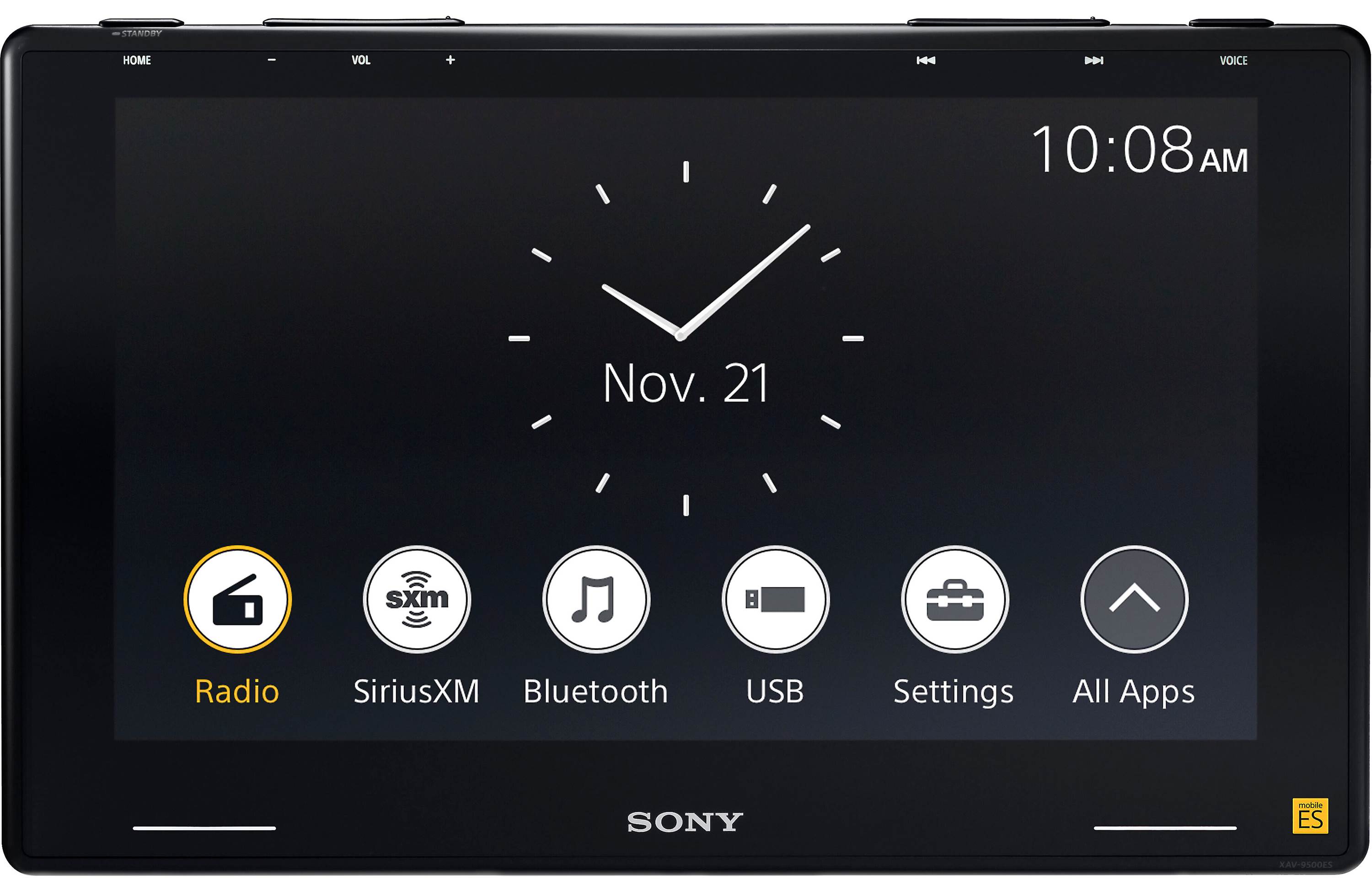

XAV-9500ES 10.1'' Mobile ES High-Resolution Digital Media Receiver

Product Overview

Large, 10.1" HD (1280 x 720) capacitive touchscreen

Single-DIN chassis gives more installation options

LDAC™ allows wireless streaming of High-Resolution Audio with exceptional quality

Native 192 kHz / 24-bt WAV, FLAC, ALAC audio playback, and DSD file playback via 192 kHz / 24-bit PCM conversion

Everything in view

Now updated with a 10.1‑in high-definition LCD panel and optically gapless design, it boasts best-in-class picture quality while assuring safer and easier operation than ever.

Gapless Anti-glare Capacitive Touchscreen

Unlike a conventional display, the LCD is bonded directly to the protective glass touch layer with a transparent adhesive. The result is an extremely precise touch experience along with enhanced contrast and visual performance.

The Way Artists Truly Intended with Hi-Res Audio

Enjoy the subtle nuances of studio-quality sound with High-Resolution Audio. Passion for music unites every component from signal to speaker, so it feels like the artist is performing right in front of you.

Full smartphone connectivity without the wires

Thanks to built-in Wi-Fi and the supplied GPS antenna, you can leave your smartphone in your pocket and still access full device integration. Access navigation, communication and entertainment, all via voice control without any cable clutter.

Smarter driving with intelligent voice control

Connect your smartphone to the XAV-9500ES media receiver and speak through the supplied microphone. Voice control makes it safer and easier than ever to navigate, communicate and play music on the road.

Siri with Apple CarPlay

Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls and messages are all under your control.

Voice Control with Android Auto

Use voice commands to dictate messages, take phone calls or get help from Google Maps. You can even control music playback, just by talking.

Easy mounting and adjustment

The sturdy and adjustable mount is designed for single-DIN installation to suit a wide variety of vehicles. 1 The four-way adjustment makes it easy to position the oversized display in your perfect spot.

Tilt +/- 10 degrees

Depth 1.57" Min / 2.36" Max

Height 2.36"

High-Resolution wireless LDAC audio

Enjoy the convenience of Bluetooth wireless audio and exceptional sound quality thanks to LDAC. Connect compatible devices to stream audio at 96 kHz / 24-bit sampling with bitrates up to 3x higher (990 kbps) than conventional Bluetooth.

Engineered for ultimate listening pleasure—ESS digital-to-analog converter

Experience the same calibre of sound usually reserved for high-end home audio products, thanks to the ESS DAC chip—a premium converter that provides optimum quality, from all your digital music files. With high-performance 32-bit processing and eliminated timing jitter, this D/A converter delivers an unprecedented dynamic range and low harmonic distortion.

Anti-resonance dual-layer chassis

The dual-layer design of the chassis separates analog and digital circuitry, preventing electro-magnetic interference for uncompromised sound quality.

Choices for optimum performance

Carefully selected components ensures superb sound quality. The dedicated choke coil features powerful bass while filtering unwanted frequencies, for controlled and dynamic audio reproduction. Audiophile-grade capacitors deliver effortless power for clearness and tight bass, while multi-layer polymer capacitors help ensure low overall harmonic distortion and natural sound character.

Sound Customization

The high-grade 192‑kHz / 24‑bit DSP offers pristine sound processing and time alignment—down to a remarkable 1 cm for each of the 6 addressable channels (4 speakers + 2 subwoofers via pre-out). A 14-band EQ lets you adjust the overall sound to your music or taste, and each of the 6 channels features independent 8-band parametric EQ to get optimum performance across different speaker configurations. Together with the 3-zone crossover, you can dial in the perfect match of front, rear and subwoofers

Build your own sound system

With the three high voltage (5V) pre-outs, you can add components of your choice, like extra amplifiers and subwoofers.

Connected to your car

iDatalink® Maestro® compatibility connects the XAV-9500ES to your vehicle’s onboard computer, turning it into a customized display for factory-equipped functions and features. With an iDatalink® Maestro® RR/Maestro® RR 2 by Automotive Data Solutions you can interface with vehicle infotainment and information—for performance, safety and comfort—directly on the 10.1‑in touchscreen.

Rear view camera ready

Have a factory rear view camera, or want to add one? View its feed through the screen, along with customizable guidelines that help you back in safely.

Quick wake up

With the Quick Wake-up feature, you're ready to go right after turning on the ignition.

HD Graphical User Interface

The 1280 x 720 HD touchscreen offers an enhanced user interface for safety and ease of use. It features a high-contrast “Mobile ES” colour scheme, as well as customizable wallpaper to suit your vehicle and style.

Sirius XM Radio ready

Connect your Sirius XM Radio satellite tuner (not supplied) to enjoy commercial-free music, sport, news and entertainment.
