SnapAV Episode® 700 Series 6.5" Home Theater In-Wall LCR Speaker
At a Glance
Product Dimensions 10.9"h x 22.3"w x 4"d
Designed to meet the demands of critical listeners, the ES-700 is equally capable as a music or home theater speaker. Even at low volume levels, you'll appreciate the clarity and detail that these speakers produce…and when you turn them up, you'll enjoy a wide, natural soundstage and exceptionally dynamic sound.Read More
Get to know this product.
Product Overview

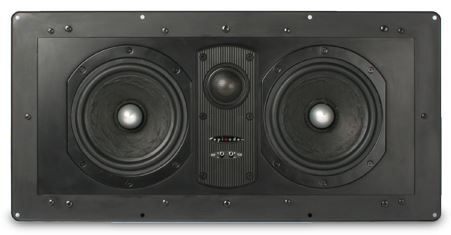

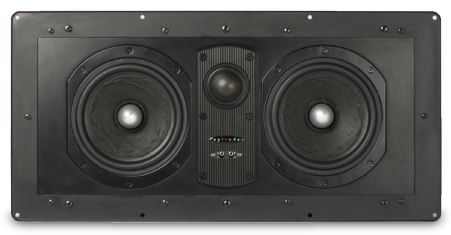

Episode® 700 Series Home Theater In-Wall LCR Speaker (Each)
- Designed to meet the demands of critical listeners, the ES-700 is equally capable as a music or home theater speaker. Even at low volume levels, you'll appreciate the clarity and detail that these speakers produce…and when you turn them up, you'll enjoy a wide, natural soundstage and exceptionally dynamic sound.
NCS (Natural Cell Structure) Woofer Material
- We've combined the strength of Kevlar™ with the natural damping qualities of paper in a unique woofer material. A multi-step drying process during manufacturing enables these drivers to retain a natural, open cell structure that results in well-damped, neutral acoustic characteristics. The result is tighter bass with lower distortion. This speaker features two 6-1/2-inch versions of this driver, further enhancing low-frequency performance.
Catenary Dome Tweeter
- Most dome tweeters are spherical…so why isn't the tweeter in the ES-700? The oblong (catenary curve) shape of this tweeter produces more off-axis acoustic energy. The translation: a wider, more engaging soundstage with an open, forward sound.
Wood Back Box
- An integrated 1/2 in. MDF sealed wooden back box is tuned and damped for tighter bass response and the ultimate high-end performance.
Room Compensation Switches (Tweeter and Woofers)
- No two rooms are alike. Floor coverings, drapes, windows and furniture all impact how a speaker sounds in a room. With the ES-700, you can quickly adjust the tweeter's output by 3db to compensate for rooms with more or less sound absorbing materials. The same adjustment can be made to the woofer to compensate for installations near walls and corners that might otherwise cause a speaker to sound "boomy".
Installation Ease
- Quick snug dogs, gold-plated push button wire terminations, easy magnet held rust-proof aluminum grill and cutout template all make this the standard for installation ease.
Useful Documents
Specifications
General Specs |
| Product Weight (lbs.) | 16.5 |
| Color Finish Name | Black |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 600 |
| Color | Black |
| Impedance | 6 ohms |
| Maximum Power Handling (Watts) | 600 |
| Speaker Type | In-Wall Speakers |
| Depth (in.) | 4 |
| Height (in.) | 10.9 |
| Width (in.) | 22.3 |
| Woofer Size | 6.5" |
Connections |
| Connector Type: | Gold Plated 5 Way Binding Posts |
Construction |
| Tweeter Composition: | Titanium |
| Woofer Composition: | Paper Kevlar® Cone Long-Throw |
Other |
| Crossover Type: | 4.0 kHz |
| Sold As: | Each |
Specifications |
| Sensitivity: | 85 dB |
| Speaker Type: | In-Wall Speaker |
