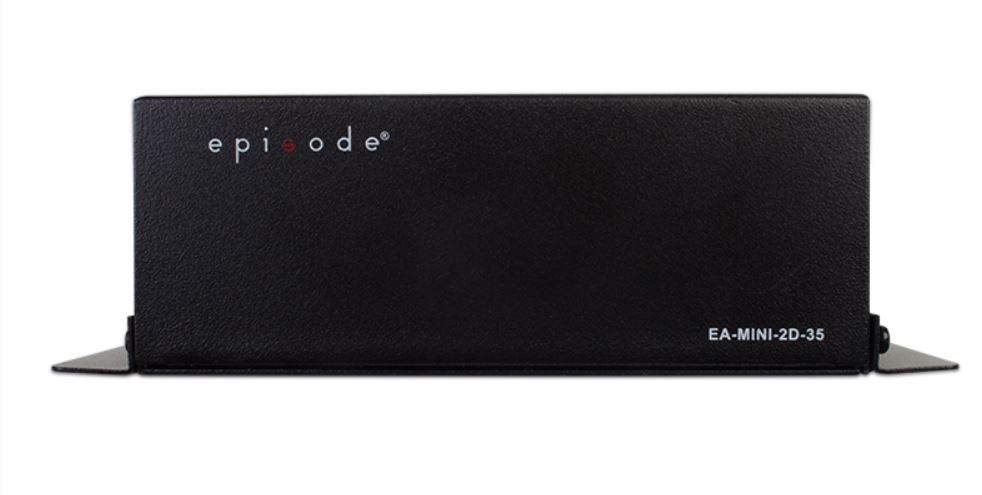

SnapAV Episode® 2 Channel Digital Mini-Amplifier

Episode® 35 Watts per Channel Digital Mini-Amplifier (2 Channel with IR learning and subwoofer output)

The Episode® 2-channel digital mini amplifier delivers outstanding sound quality and cool-running performance – in one convenient pint-sized package. Featuring two inputs with selectable priority and IR control with learning, this amp can be programmed to work with any remote or control system. And when used in conjunction with our Strong™ VersaBox, it can be tucked neatly behind the TV, meaning customers don’t even know it’s there.

Two Inputs With Selectable Input Priority

Equipped with two inputs – analog RCA and digital optical Toslink – this amplifier drives superior sound for two pieces of equipment, like a Blu Ray player and cable box. Plus it’s great for applications that need to incorporate multi-room audio with a single TV. This amp automatically switches to the input with an active signal, but you can set a priority input to ensure that one device always takes precedence – even if both are being used.

IR Controllable With Learning

Thanks to IR learning, you can control this amplifier using the customer’s existing remote. It provides fast and easy control of volume, as well as other basic commands. You can also use the Episode® Remote Control for Digital Mini-Amplifier (sold separately) to teach the discrete IR commands to any universal remote. And for more complex systems, the amp’s hard-wired IR input can be used to connect directly to a control system – no emitters required. Hex codes for all commands are available for download on the Support Tab.

Add Bass With Ease

This amp features a subwoofer line level output and a 5V DC output – perfect for connecting our ES-SUB-WIRELESS or any other device that uses 5V DC…without using a bulky power supply. And you can even set the high pass filter to 60Hz Pass to protect both the amplifier and the speakers it is powering.

Now You See It, Now You Don’t

A small form factor, compact controls, efficiently placed connections, and mounting tabs allow this digital mini amplifier to fit easily into our Strong™ VersaBox, so it can disappear behind the TV and get completely out of the customer’s way. And because of its small size you can also place it directly on a table top without it becoming an eyesore.

Digital Amplification

Our engineers have combined advanced digital amplifier technologies with installer-friendly features to create a robust power plant built from the ground up for today's audio applications. Unlike analog amplifiers from the competition, our digital amplifiers are much more energy efficient and run up to 80% cooler.

Audio Sensing Power On

Perfect for multi-room audio applications, this amplifier has a default setting for audio sensing. Once it detects a source it automatically turns on, and if there’s a lack of signal for 20 minutes the device turns off. This smart feature is great for use with Sonos or Apple Airplay.

Tone And EQ Settings

Equipped with EQ settings, this amplifier can be customized to meet the customer’s exact preferences. Three presets for music, movies and voice allow you to adjust the settings to achieve ideal audio in every application. Additional bass and treble adjustments are available through discrete IR command codes.

Product Package Includes:

• (1) Amplifier
• (1) Detachable 6ft IEC Power Cable
• (4) Rubber Adhesive-Back Feet
• (4) Module Mounting Pins
• (1) 5mm 2-pin Screw Terminal
• (1) 5mm 4-pin or (6-pin for 3D) Screw Terminal
• (1) Installation Manual
• (1) IR Learning Guide
