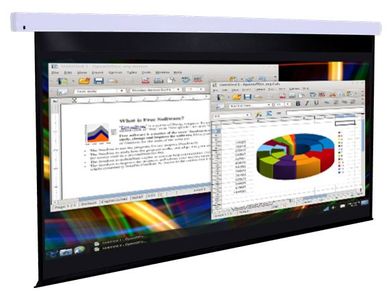

Dragonfly™ Motorized 103 in. Matte White Projection Screen (16:10 Aspect Ratio)
- Ideal for conference rooms where computers with VGA outputs are used, this Dragonfly™ Motorized Projection Screen has a 16:10 aspect ratio that effectively eliminates black bars and image over-scan. A premium screen material is bonded to an inner layer of woven fiberglass that stiffens the material to help hold flat during use. Add to that its ease of installation, whisper-quiet tubular motor, and a variety of control capabilities - and you’ve got a projection screen that’s perfect for your next commercial installation.
Matte White Screen Material
- Our Matte White screen material is a great choice for applications where you have control over the ambient light. It's engineered with a micro-diamond pattern that delivers ultra-wide off-axis viewing – so no matter where you're sitting you get the best performance. With a 1.0 gain and 170-degree viewing angle it prevents hot-spots and color shifts, while reducing light "ripples" and glare – all to create impeccable color balance and a true-to-life experience.
Screen Fabric Construction
- For better flexibility, durability and visual performance, our Non Tab Tension screens are constructed of four bonded layers. The first, constructed of PVC, provides a smooth backing as the motorized screen rolls onto itself. A sturdy, yet flexible woven fiberglass layer is then added to form the structural core – virtually eliminating stretching and preventing wrinkles. A top PVC layer adds more durability and forms a perfectly smooth surface for the final visible layer, which features an embossed acrylic coating that greatly increases gain and delivers a bright, brilliant image for the performance of a lifetime.
Flexible Control + Wall-Mounted Remote
We’ve taken the guesswork out of specifying and controlling your Dragonfly motorized screen. Each model comes standard with the most popular control types: RS-232, IR,12V trigger, wall switch and contact input. Plus, we include a mounting bracket for the remote – so the customer never has to search to find it.
- Wall Switch: Use the included wall switch and cable for quick and easy screen operation, meaning the customer always has a way to quickly raise and lower the screen.
- Contact Input: An included dry contact closure input provides a simple way to raise and lower the screen.
- 12V Trigger: If you're using a projector or AV receiver with a 12V output, use the included 30’ cable to easily have the screen raise and lower when that device is turned on. When the installation prohibits using a wired solution, you can go wire-free with our DFM-RF-TRIG-12V (for use with projectors that have a 12V trigger) or DFM-RF-TRIG-110V (for use with projectors that do not have a 12V trigger output). Note: Supports 3-12V.
- IR: The included case-mounted IR receiver means you can mount the screen and start controlling it right of the box with the included IR remote control. Should you choose to hide the casing completely behind a curtain, soffit or in the ceiling itself, an external IR receiver is included to let you simply plug in and place at a discrete location. Simple!
- RS-232: The included RS-232 connection is perfect for integrating the screen into popular control systems.
Flexible Mounting, Simple Installation
- Your installer's valuable time is best spent tuning the room for the perfect performance - not assembling and installing the screen. That’s why this product features flexible wall brackets that can be used three ways: wall, ceiling, or suspended. Plus, they can slide the entire length of the screen – meaning you can mount them where it’s most convenient. Installing the screen is simple too – just hook it to the top of the wall bracket and rotate it downward until it rests in place. You can even move it left and right to get the perfect position before tightening the screws to lock it in place.
Quick & Quiet Motor
- Dragonfly motorized screens feature a whisper-quiet tubular motor with enhanced efficiency and nearly silent operation. Raising and lowering a screen has never been this pleasant, or this quiet. And with an average drop time of 18 seconds, the system is ready as soon as you are.
