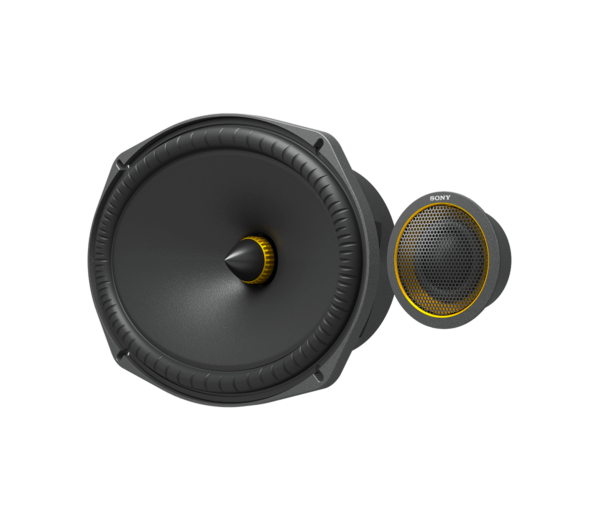

Mobile ES™ 6 x 9" (16 x 24 cm) 2-Way Component Speakers

Product Overview

Lightweight Rigid Cellular woofer diaphragms for precise bass sound

Soft-dome component tweeter covers up to 40 kHz ultra-highs

Separated Notch Edge Surround for less distortion and clear sound

Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling

Elevate your sound

Experience dynamic sound with astonishing clarity. The woofer with Lightweight Rigid Cellular diaphragm provides power and depth, while the component soft dome tweeter gives the best stereo sound staging in your vehicle.

Lightweight Rigid Cellular Aramid Fibre Matrix Diaphragm

The diaphragms for the woofer and mid-range driver are crafted from Sony’s unique Lightweight Rigid Cellular material, formerly known as mica reinforced cellular. The latest generation compound has been further optimized alongside mechanical driver improvements, to deliver an even wider frequency response and smoother, more natural sound characteristics.

Optimal formulation

Embedding in a unique matrix with aramid fibres suppresses diaphragm resonance and minimizes distortion, not only in the lows, but also in the mid and higher frequencies. The result is sound that is powerful at all frequencies and uncommonly clean, even at high volume.

Bi-amp capable crossover with gain selector

The audiophile-grade crossover features an optimal, lower-resistance film capacitor for smooth high-end. Its bi-amp capable design mitigates current distortion to the tweeter when running the woofer with high input levels. A dedicated gain selector helps keep balance of woofer and tweeter signal levels, and enables tweeter level adjustment even when driving the components from a single amplifier.

Separated Notch Edge Surround

The woofer surround features another proprietary technology, with distinctive curved notches improving the vertical amplitude symmetry, for dramatically reduced distortion and enhanced clarity.

Five-beam Frame Structure and Dynamic Air Diffuser

The Five-beam Frame design disperses resonance while the integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.

Tweeters to hit the high notes

Compatible with High-Resolution Audio, a soft dome tweeter diaphragm is directly attached on the voice coil, designed to cover your music's ultra-high ends, with a frequency range extending up to 40kHz.

Progressive Height Rate Spider

The acoustically-optimized spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone.

Phase plugs

The resonance damping phase plugs on the XS-692ES woofer and mid-range driver help realise ideal frequency response, right up to the crossover points. A rigid aluminum bobbin in the woofer and Dynamic Air Diffuser further support the speaker's wide frequency response, for controlled and dynamic sound delivery.

Structure cutaway

Discover structures of the Mobile ES speaker, including newly applied mechanical approaches such as Separated Notch Edge Surround, Five-beam Frame design, and Dynamic Air Diffuser.
