Engineered for ultimate listening pleasure on the road, the Mobile ES Series products bring the very best of your music and connectivity together, for a driving experience like never before.Read More
Lightweight Rigid Cellular aramid fiber matrix woofer for precise and responding bass
Soft-dome tweeter covers up to 40 kHz ultra-highs
Separated Notch Edge Surround for less distortion and clear sound
Five-beam Frame design disperses resonance
Dynamic Air Diffuser helps efficient air circulation for smooth cone travel and cooling

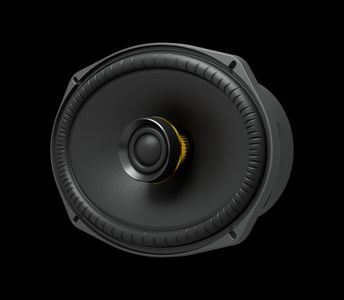

Add new levels of dynamic power and depth to your system with XS-690ES 2-way speakers. With the clarity of Mobile ES and wide frequency response, it will change the way you listen in your car forever.
The main speaker diaphragm on the XS-690ES is crafted from Sony's unique Lightweight Rigid Cellular material, formerly known as MRC. The latest generation compound has been further optimized alongside mechanical driver improvements, to deliver an even wider frequency response and smoother, more natural sound characteristics.
Embedding in a unique matrix with aramid fibers suppresses diaphragm resonance and minimizes distortion, not only in the lows, but also in the mid and higher frequencies. The result is sound that is powerful at all frequencies and uncommonly clean, even at high volume.
The woofer surround features another proprietary Sony technology, with distinctive curved notches improving the vertical amplitude symmetry, for dramatically reduced distortion and enhanced clarity.
The Five-beam Frame design disperses resonance while the integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.
The acoustically-optimised spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone.
Compatible with High-Resolution Audio, a soft dome tweeter diaphragm is directly attached on the voice coil, designed to cover your music's ultra-high ends, with a frequency range extending up to 40kHz.
Discover structures of the Mobile ES speaker, including newly applied mechanical approaches such as Separated Notch Edge Surround, Five-beam Frame design, and Dynamic Air Diffuser.
Specifications | |
| Effective Frequency Range | 35–40,000 Hz |
| Impedance (ohms) | 4 |
| Output Sound Pressure | 90 dB ±2 dB SPL (1 W, 1 m) |
| Peak Power | 330 W |
| RMS Power | 110 W |
| Rated power | 90 W |
| Configuration | Coaxial, 2way |
