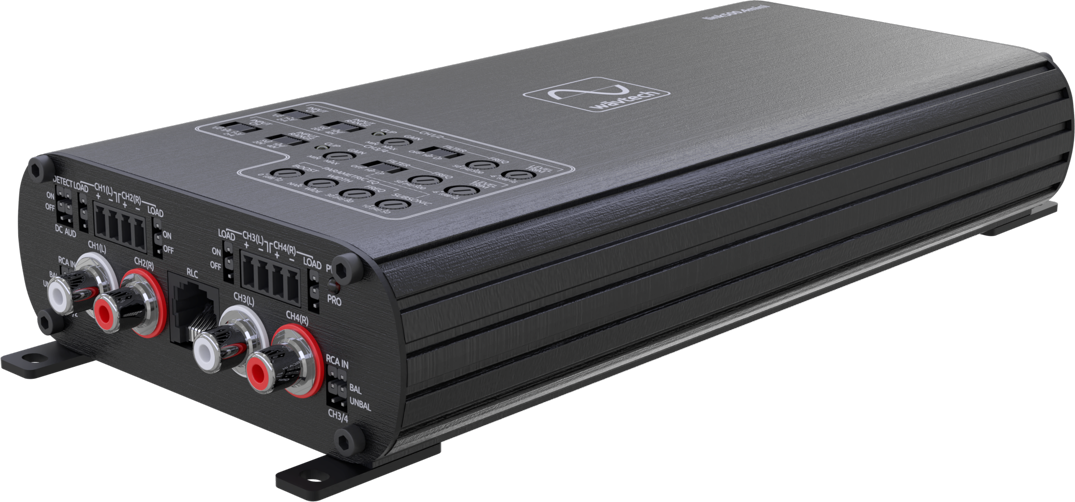

link500.4mini Compact 4 Channel Amplifier


Model #:

link500.4mini

Model #: link500.4mini
1269889
WavTech
$449.99

At a Glance

A pair of new front speakers and a subwoofer is one of the most common aftermarket audio upgrades. The link500.4mini is the perfect amplifier for this application. When used in 3-channel mode, the amplifier can produce 125 watts x 2 for the main speakers and 250 watts x 1 for the subwoofer, so it won’t lack for power. Speaking of the subwoofer, channels 3/4 have a 1-band PEQ, a subsonic filter and the ability to add an RLC to fine tune the subwoofers performance. The link500.4mini has Wavtech’s link4 built-in, with internal loading and the ability to handle up to 40V of hi-level input. It also has fully adjustable high and low pass crossovers. For factory audio systems where no full-range signal is present, the link500.4mini has built-in summing, so it can handle that internally, without the need for an outboard processor. Like all Wavtech amplifiers, the link500.4mini is start/stop system compatible.Read More

Available in Store Only
$449.99

Get to know this product.

Product Overview

Product Overview

link500.4mini Features

500 Watt 4-Channel Amplifier

75 watts x 4 @ 4 ohms

125 watts x 4 @ 2 ohms

250 watts x 2 @ 4 ohms BTL

Small Footprint Only 9”x4.5”x1.65”

Adjustable Paragraphic EQ (Channels 3/4)

Variable Subsonic Filter (Channels 3/4)

Variable Hi/Low Pass Crossover (-12dB/oct)

Remote Level Control (RLC) w/Optional linkRC (CH 3/4)

Built-In Summing w/Level Trim Adjsutment

Start/Stop Sytem Compatiable

Differential Balanced Inputs

Variable Gain Adjustment w/Clip LED

Auto Turn-On via DC-Offset or Audio Signal Detect

OEM Load Detect Compatible

Locking Detachable Hi-Level Speaker Terminals

Professional Grade Panel Mount RCA’s

Compact Aluminum Chassis w/Detachable Mounting tabs

link500.4mini Specifications

lin500.4mini Specifications Input Sensitivity SPK --------------------------- 1-20Vrms, 2-40Vrms RCA --------------------------- 0.2V-5Vrms, 0.4V-10Vrms Max Input Voltage (SPK) ------ 40Vrms Frequency Response ----------- <10Hz to >45kHz (+0/-3dB) THD+N ------------------------------- <1% at rated power S/N ------------------------------------- >80dBA (1W, 4Ω)
