LINK500.1MINI Compact Monoblock Amplifier


Model #:

link500.1mini

Model #: link500.1mini
1269890
WavTech
$349.99

At a Glance

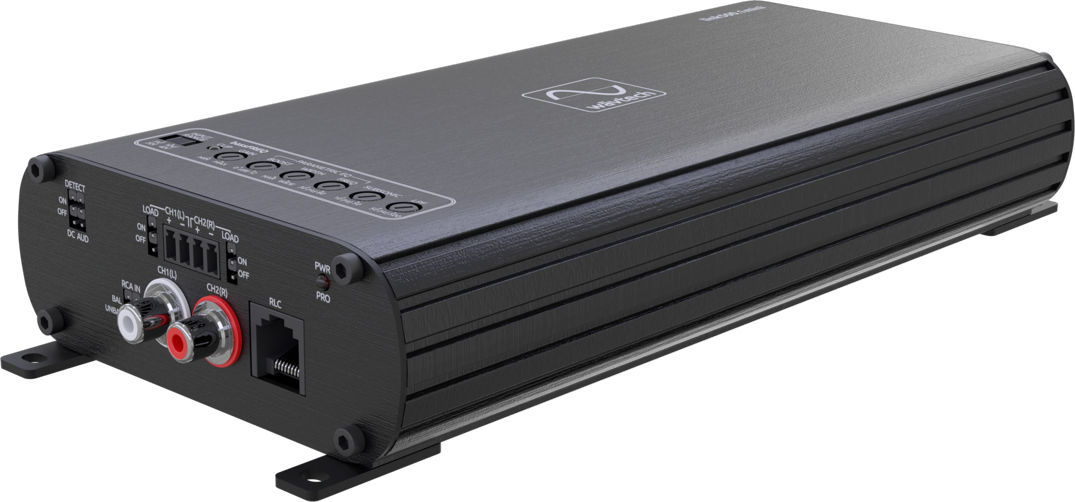

The link500.1mini amplifier was engineered from the ground up to be the best possible option for adding bass to any system. The speaker level input can handle up to 40V and features built-in loading, while the RCA input accepts up to 10V, making it the perfect solution for both factory and aftermarket head units. The link500.1mini produces 500 watts RMS @ 2ohms, and its incredibly small size means it will fit almost anywhere. The link500.1mini utilizes Wavtech’s proprietary bassFREQ preamp. It features a 24dB per octave crossover, adjustable parametric EQ and a subsonic filter, providing the fine tuning required to get the best out of any subwoofer. Like all Wavtech amplifiers, the link500.1mini is compatible with start/stop systems. The optional linkRC remote provides for even more system control.Read More

Available in Store Only
$349.99

Get to know this product.

Product Overview

Product Overview

link500.1mini Features

500 Watt Mono Amplifier

300 watts x 1 @ 4 ohms

500 watts x 1 @ 2 ohms

Small Footprint Only 9.05”x4.5”x1.65”

Fully Adjustable Parametric EQ

Variable Low-Pass Crossover (-24dB/oct)

Variable Subsonic Filter (-24dB/oct)

Remote Level Control (RLC) w/Optional linkRC

Start/Stop System Compatible

Differential Balanced Inputs

Variable Gain Adjustment w/Clip LED

Auto Turn-On via DC-Offset or Audio Signal Detect

OEM Load Detect Compatible

Locking Detachable Hi-Level Speaker Terminals

Professional Grade Panel Mount RCA’s

Compact Aluminum Chassis w/Detachable Mounting tabs

link500.1mini Specifications

Input Sensitivity SPK --------------------------- 1-20Vrms, 2-40Vrms RCA --------------------------- 0.2V-5Vrms, 0.4V-10Vrms Max Input Voltage (SPK) ------ 40Vrms Frequency Response ----------- <10Hz to >500Hz (=0/-3dB) THD+N ------------------------------- <1% at rated power S/N ------------------------------------- >78dBA (1W, 4Ω)
