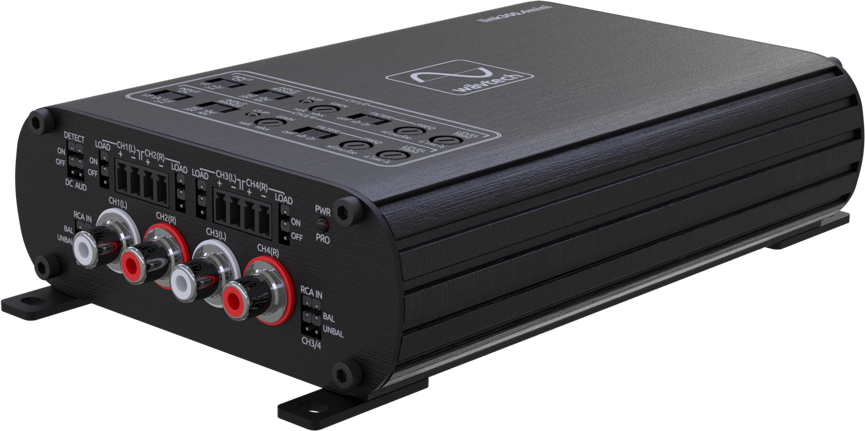

LINK300.4MINI Compact 4 Channel Amplifier


Model #:

link300.4mini

Model #: link300.4mini
1269818
WavTech
$349.99

At a Glance

The link300.4mini is in a class by itself. The most obvious thing is its extremely small size, but don’t Iet that fool you. Unlike most small footprint amplifiers, the link300.4mini is bridgeable. It can easily drive a nice set of components as well as a subwoofer. The link300.4mini has Wavtech’s best in class LOC, with built-in loading and the ability to handle up to 40V of hi-level input. Perhaps the most unique feature is the built-in summing. For factory audio systems that don’t have a full range signal, the link300.4mini can handle that internally, so no additional processor is required. The level trim adjustment allows for fine tuning the output of each pair of channels. As if all of that isn’t enough, the link300.4mini is compatible with OEM start/stop systems as well.Read More

Available in Store Only
$349.99

Get to know this product.

Product Overview

Product Overview

link300.4mini Features

300 Watt 4-Channel Amplifier

50 watts x 4 @ 4 ohms

75 watts x 4 @ 2 ohms

150 watts x 2 @ 4 ohms BTL

Small Footprint Only 6.4”x4.5”x1.65”

Variable Hi/Low Pass Crossover (-12dB/oct)

Varaiable Subsonic Filter (-12dB/oct)

Built-In Summing w/Level Trim Adjustment

Start/Stop Sytem Compatible

Differential Balanced Inputs

Variable Gain Adjustment w/Clip LED

Auto Turn-On via DC-Offset or Audio Signal Detect

OEM Load Detect Compatible

Locking Detachable Hi-Level Speaker Terminals

Professional Grade Panel Mount RCA’s

Compact Aluminum Chassis w/Detachable Mounting tabs

link300.4mini Specifications

Input Sensitivity SPK --------------------------- 1-20Vrms, 2-40Vrms RCA --------------------------- 0.2V-5Vrms, 0.4V-10Vrms Max Input Voltage (SPK) ------ 40Vrms Frequency Response ----------- <10Hz to >45kHz (+0/-3dB) THD+N ------------------------------- <1% at rated power S/N ------------------------------------- >80dBA (1W, 4Ω)
