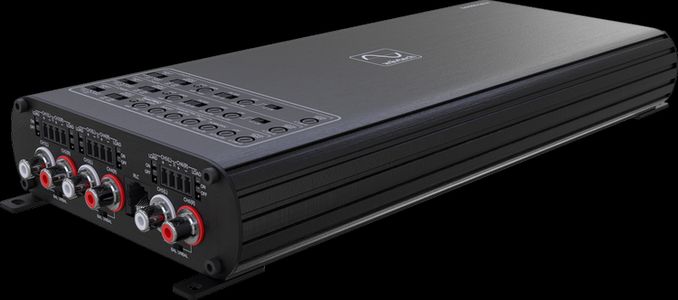

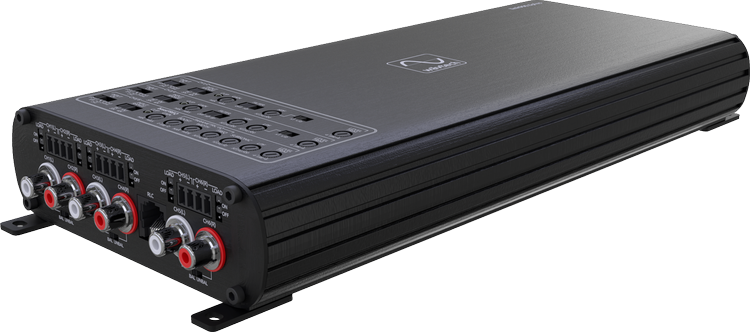

link1000.5plus 5 Channel Car Audio Amplifier


Model #:

link1000.5plus

Model #: link1000.5plus
1583506
WavTech
$649.99

At a Glance

Product Dimensions 5.5"h x 11.9"w x 1.65"d

The link1000.5plus is the perfect complete system amplifier. One of the drawbacks of most 5-channel amplifiers is that while there is usually enough power for the front and rear main speakers, the power left over of the subwoofer is limited. Not so with the link1000.5plus. Channel 5 produces a robust 500 watts RMS @ 2 ohms, enough for most subwoofer systems. Like all Wavtech amplifiers, the link1000.5mini has built-in adaptive loading and can accept up the 40V of input. The link1000.5mini features built-in summing for up to 6-channels of input, so you won’t need to purchase an external processor in applications where a full range signal is not present. Like all Wavtech amplifiers, it is compatible with Start/Stop systems. It also features 12dB per octave crossover on the 4 main channels and Wavtech’s proprietary bassFREQ preamp with 24dB crossover and subsonic filter on the mono channel. The optional linkRC can be used to control the level of the subwoofer from the front of the vehicle.Read More

Available in Store Only
$649.99

Get to know this product.

Product Overview

Product Overview

link1000.5plus Features

1000 Watt 5-Channel Amplifier

Main Channels

75 watts x 4 @ 4 ohms

125 watts x 4 @ 2 ohms

250 watts x 2 @ 4 ohms BTL

Subwoofer Channel

300 watts x 1 @ 4 ohms

500 watts x 1 @ 2 ohms

Other Features

Small Footprint Only 11.9”x5.5”x1.65”

Variable HP Crossover (-12dB/oct) with 1x/10x CH1/2

Variable HP/BP/LP Crossover (-12dB/oct) CH3/4

Variable Low-Pass Crossover (-24dB/oct) CH5

Variable Subsonic Filter (-24dB/oct) CH5

Adjustable Parametric EQ CH5

Remote Level Control (RLC) w/Optional linkRC

bassFREQ Bass Processor w/Parametic EQ CH5

Active Thermal Management

Start/Stop System Compatible

Adaptive OEM Load Technology

40V Input Capability

Differential Balanced Inputs

Variable Gain Adjustment w/Clip LED

Auto Turn-On via DC-Offset or Audio Signal Detect

Adaptive OEM Load Technology

Locking Detachable Hi-Level Speaker Terminals

Professional Grade Panel Mount RCA’s

Compact Aluminum Chassis w/Detachable Mounting tabs

Useful Documents
Specifications

General Specs

Depth (in.)1.65
Width (in.)11.9
Height (in.)5.5
Amplifier ClassClass D
Amplifier Output (Watts)1000
Color Finish NameBlack
Amplifier Channels5
Seriesplus series
Water ResistantNo
Digital InputYes
Speaker Level InputYes
WarningProposition 65 Warning for California Residents
