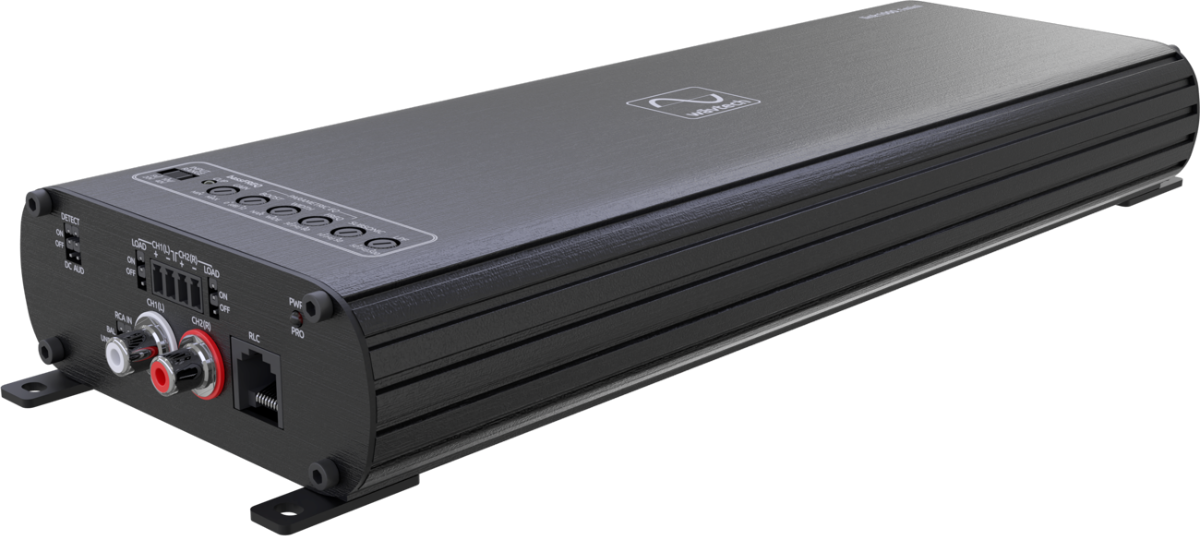

LINK1000.1MINI Compact Monoblock Amplifier

WavTech

Model #:

link1000.1mini

At a Glance

The link1000.1mini is the most powerful amplifier in the Wavtech mini series. This amp makes 1000 watts RMS @ 2ohms. The speaker level inputs of the link1000.1mini can handle up to 40V and feature built-in loading, making for easy connection to both factory and aftermarket head units. At 11.9”x4.5”x1.65”, it is easily one of the smallest 1000 watt RMS amplifiers available today. The link1000.1mini has Wavtech’s bassFREQ preamp, with a 24dB per octave crossover, an adjustable parametric EQ and a subsonic filter. This provides the fine tuning required to get the most out of any subwoofer system. The optional linkRC remote allows for control of the subwoofer system from the vehicles front seat. The link1000.1mini is also compatible with OEM start/stop systems.Read More

Available in Store Only
$449.99

Get to know this product.

Product Overview

Product Overview

link1000.1mini Features

1000 Watt Mono Amplifier

600 watts x 1 @ 4 ohms

1000 watts x 1 @ 2 ohms

Only 11.9”x4.5”x1.65”

Fully Adjustable Parametric EQ

Variable Low-Pass Crossover (-24dB/oct)

Variable Subsonic Filter (-24dB/oct)

Remote Level Control (RLC) w/Optional linkRC

Start/Stop System Compatible

Differential Balanced Inputs

Variable Gain Adjustment w/Clip LED

Auto Turn-On via DC-Offset or Audio Signal Detect

OEM Load Detect Compatible

Locking Detachable Hi-Level Speaker Terminals

Professional Grade Panel Mount RCA’s

Compact Aluminum Chassis w/Detachable Mounting tabs

link1000.1mini Specifications

Input Sensitivity SPK --------------------------- 1-20Vrms, 2-40Vrms RCA --------------------------- 0.2V-5Vrms, 0.4V-10Vrms Max Input Voltage (SPK) ------ 40Vrms Frequency Response ----------- <10Hz to >500Hz (=0/-3dB) THD+N ------------------------------- <1% at rated power S/N ------------------------------------- >78dBA (1W, 4Ω)
