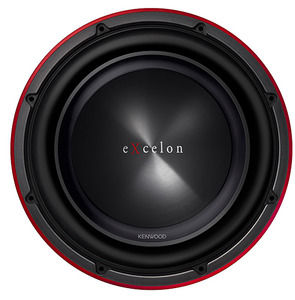

The KFC-XW1041 has a robust thermal management system implemented. with an Aluminum Bobbin,Closed Yoke Design, and Advanced Airflow Control.Read More
Peak Power 1300W
PP X-motif Cone with Diamond Array Pattern
Closed Yoke with Advanced Airflow Control
Stress Controlled Spider
Robust Thermal Management System
X-Motif Cone controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.
The KFC-XW1041 has a robust thermal management system implemented. with an Aluminum Bobbin,Closed Yoke Design, and Advanced Airflow Control.
Computer-optimized damper controls stress and increases mechanical durability.
General Specs | |
| Depth (in.) | 5.63 |
| Height (in.) | 10.81 |
| Woofer Size | 10" |
| Mount Depth | 4.88 |
| RMS Power Handling (Watts) | 300 |
| Peak Power Rating (Watts) | 1300 |
| Subwoofer Size | 10" |
| Shallow Mount | No |
General | |
| Sealed Enclosure Dimensions (W x H x D) | 14.75" x 12.75" x 9" (375mm) x (324mm) x (229mm); Inner Volume: 0.65cft (18.4 liter) |
| Ported Enclosure Dimensions (W x H x D) | 18.25" x 12.25" x 13" (464mm) x (311mm) x (330mm); Inner Volume: 0.9 cft (25.5 liter) |
| Mounting Hole | 9-3/16" (233mm) |
| Impedance (O) | 4 |
| Peak Input Power (W) | 1300 |
| RMS Power (W) | 300 |
| Sensitivity (dB at 1m) | 84 |
| Frequency Response (Hz) | 33 ~ 300 |
| Size | 250mm; 10 inch |
| Diaphragm | Paper |
| Cap | Injection PP |
| Surround | Urethane |
| Basket | Steel |
| Gasket | ABS |
| Magnet | Ferrite; f134-f70-t30 |
| Width | 275mm; 10 - 13/16 inch |
| Height | 275mm; 10 - 13/16 inch |
| Cut-out Diameter | 230mm; 9 - 1/16 inch |
| Depth | 142.2mm; 5 - 5/8 inch |
| Mounting Depth | 124mm; 4 - 7/8 inch |
| Woofer without Gasket | 4.0 kg; 8.8 lb |
| Gross Weight | 4.6 kg; 10.1 lb |
| Weight of Magnet | 1560 g; 54.9 oz |
| Accessory | Instruction Manual, Warranty Card |
| Special Feature | Injection PP X-motif Cone with Diamond Array Pattern Closed Yoke with Advanced Airflow Control Aluminum Bobbin |
