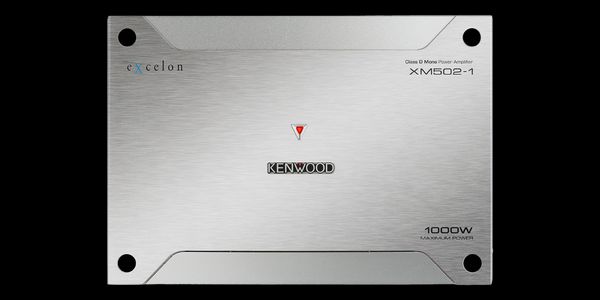

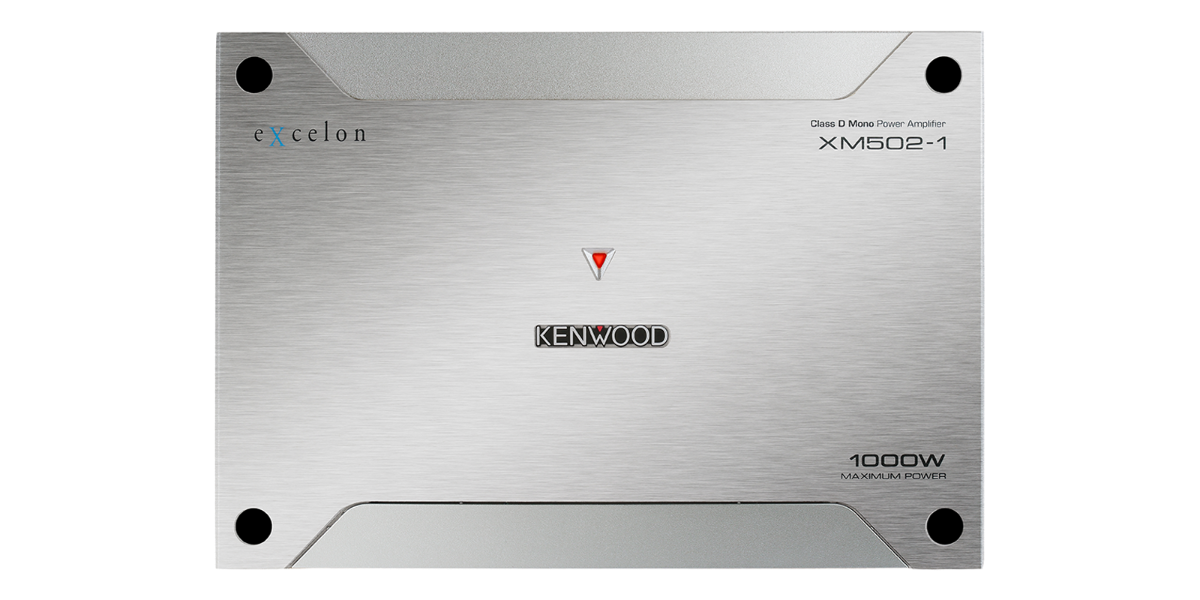

Kenwood Excelon Class D Mono Block Marine Power Amplifier

Product Overview

1000W Max

RMS 300W (4Ω)

RMS 500W (2Ω)

Variable Low Pass Filter

Bass Boost

Conformal Coating

Protective Terminal Cover

Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"

Optional Wired Remote Ready

Output Coil with Magnetic Shield

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

High Quality Capacitors

PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

Infrasonic Filter (ISF)

When the Infrasonic Filter Switch is turned on, the amplifier cuts off the low frequencies below 25Hz, which makes the amplifier’s power supply and output devices more efficient, providing clear bass output.

Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

Protective Caps and Cover

All control holes,RCA, wired remote and Speaker Level input terminals are coverd with caps and plastic covers to avoid from moisture and dust.

Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation.

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.

Variable Gain Circuit

Improved Signal to Noise Ratio

Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

Optional Wired Level Control Ready

The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume. *Control unit does not support conformal coarting or water-proof.
