Product Dimensions 2.07"h x 9.75"w x 6.62"d

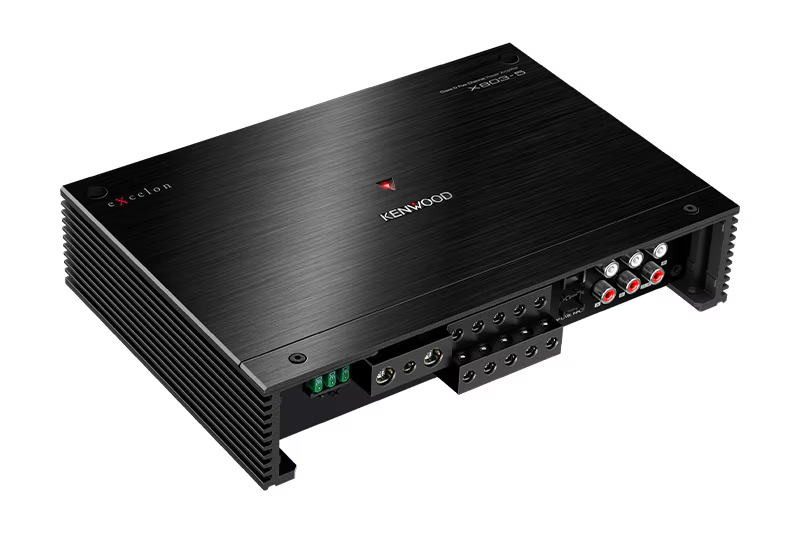

Kenwood's Excelon X803-5 five-channel amplifier delivers 50 watts RMS to each of your front and rear speakers, while sending up to 500 watts RMS to a subwoofer.Read More
Max Power 1600W
Size (inch) (W) 9-3/4" x (H) 2-1/16" x (D) 6-5/8"
Variable High & Low Pass Filter
Bass Boost
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.
Detachable sliding terminal cover offers a sleek design and easier installation.
Improved Signal to Noise Ratio
All terminals and connections are on one side for easier installation and a cleaner look.
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
The wired remote level control allows you to easily adjust the subwoofer volume.
General Specs | |
| Depth (in.) | 6.62 |
| Width (in.) | 9.75 |
| Height (in.) | 2.07 |
| Preamp Outputs | 2 - 4 Ohms |
| Amplifier Class | Class D |
| Amplifier Output (Watts) | 1600 |
| Bluetooth Capable | No |
| Amplifier Channels | 5 |
| Water Resistant | No |
| Peak Power Rating (Watts) | 1600 |
| Digital Input | No |
| Shallow Mount | No |
| Speaker Level Input | Yes |
| Number Of Outputs | 5 |
| Number Of Inputs | 3 |
| Product Weight (lbs.) | 4.6 |
General | |
| Max Power | 1600W |
| RMS Power Output (4 Ohms) | 50W x 4 + 300W |
| RMS Power Output (2 Ohms) | 75W x 4 + 500W |
| RMS Power Output Bridged | 150W x 2 (Bridged) + 300W |
| Dimensions | (W)9-3/4" x (H)2-1/16” x (D)6-5/8” |
| Weight | 4.6 lbs ( 2.1 kg) |
