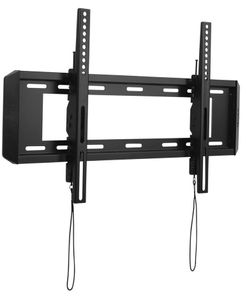

Kanto T3760 Tilting TV Mount

Model #: T3760

The T3760 is a tilting mount designed for flat panel TVs from 37” to 60” – it provides the structure and stability to get it up on the wall – hassle-free. Quick-release cords make it easy to access your connections, and move your TV left or right once the mount is installed. Easy installation, a wide range of VESA sizes, easy tilting, and the strength to hold up to 150 pounds – what more could you ask for from an easy-to-install wall mount?

The T3760 is a tilting mount designed for flat panel TVs from 37” to 60” – it provides the structure and stability to get it up on the wall – hassle-free.

Fit VESA Sizes To 600 x 400

The T3760 is compatible with a range of VESA patterns from 100×100 up to 600×400.

Supports Up To 150 Pounds

The T3760 supports a maximum of up to 150 pounds.

Strong Wall Plate

The T3760 is designed with two rows of mounting slots for extra strength and uses four lag bolts to support heavier TVs up to 150 pounds. It provides some offset abilities depending on your TV size, allowing you to position your TV anywhere along the wall plate. Made of solid steel, the 27” wall plate mounts on 16” and 24” stud spacing.

15 Degrees Of Tilt

With the T3760, your TV can be tilted up to 10° forward and 5° backward. You can easily make small but important changes to the tilt of your TV, eliminate glare and enjoy the perfect angle with this convenient feature. The tilt system comes pre-tensioned from the factory, but can be tightened if necessary.

Tilt Lock Screws

Using the included tilt lock screws, you can lock your TV at fixed intervals of +5°, 0°, and -5°. This added feature makes it easy to guarantee the selected position.

Attractive End Caps

Now you can have style and function with smooth, polished end caps that cover the ends of your mount and give you a clean, modern look.

Quick Lock Mechanism

The spring-loaded locks click neatly into place as you swing the bottom of your TV to the wall. Always within reach, the quick release cords extend below the mount and offer a quick and easy way to detach your TV from the mount and remove it from the wall. This makes it easy to install or remove cables at the back of your TV.

Features

• Installation Manual
• All mounting hardware for wood stud and concrete installation
• Tilt: +10° to -5°
