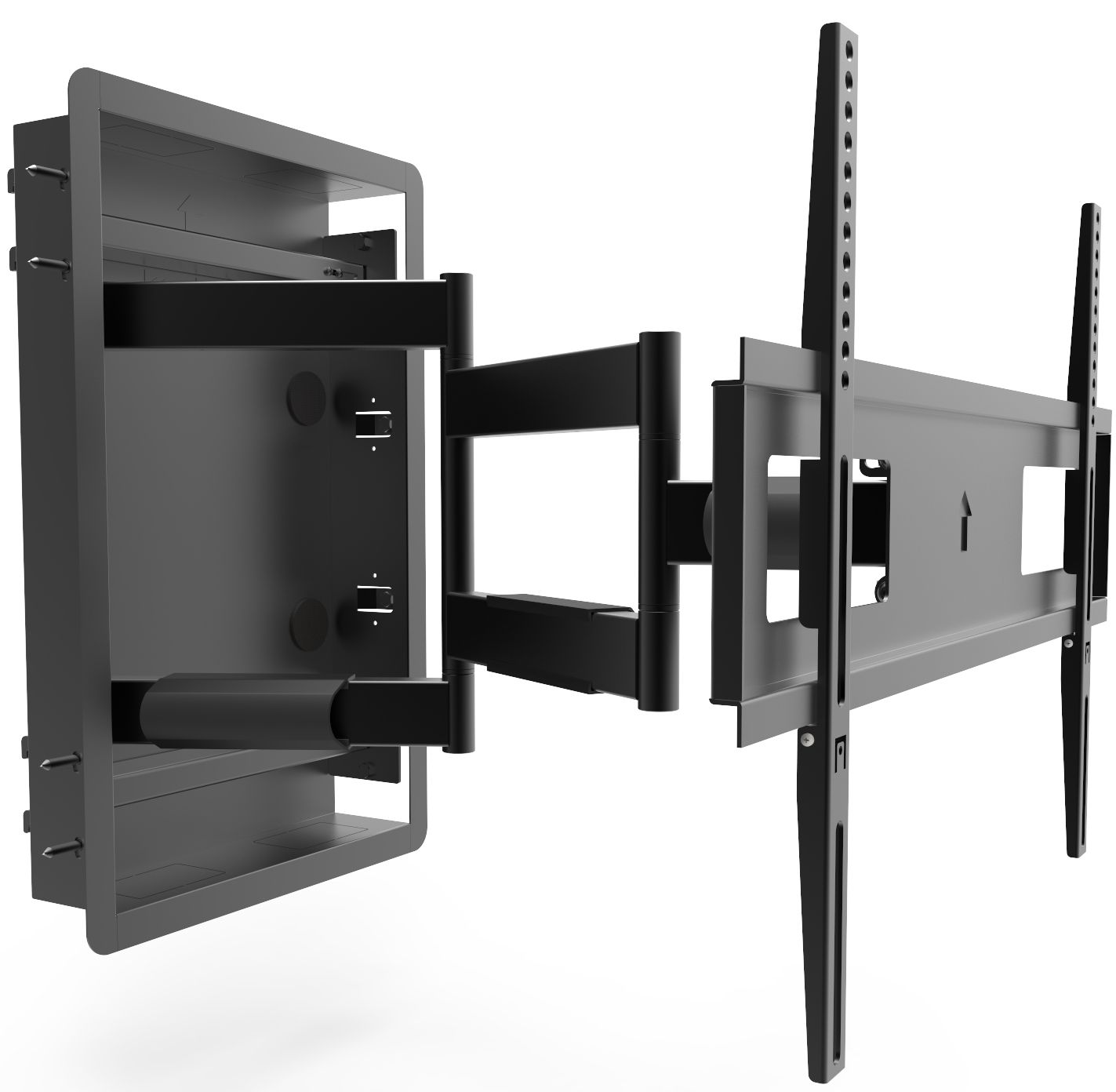

Its 27.6” long articulating arm provides -5°/+10° of tilt and 180° of swivel, ensuring optimal viewing from all angles. Built out of high-grade steel, the R500 supports 46” to 80” TVs weighing up to 135 pounds.
Recessed Design
The R500’s in-wall design is made to fit securely between 16” stud centers. When fully retracted, its arm assembly allows your TV to sit almost flush with the wall.
Supports Up To 135 Pounds
Constructed out of solid steel, the R500 safely supports 46” to 80” TVs weighing up to 135 pounds, while its adjustable mounting brackets accommodate VESA sizes between 100×100 and 600×400.
Full Range Of Motion
Use the R500’s articulating arm to ensure you always have the perfect viewing angle. Extend it out 27.6” to provide ample room to tilt and swivel your TV.
Everything You Need
Because every installation is unique, the R500 is carefully packaged with all the lag bolts, washers and spacers that you could need. An online installation video is also provided to help you along the way.
Box Dimensions
Shipping Box Dimensions | 27.8? x 17.7? 5.5? (70.5 x 45 x 14 cm) |
General
TV Sizes | 46” to 80” |
VESA Sizes | 100×100 to 600×400 |
Includes | Paper wall template for marking pilot holes
Installation Manual
All mounting hardware for wood stud installation |
Mount Aspects
Tilt | +10° to -5° |
Swivel | 180° at full extension (with 46? TV) |
Extension | 27.6? (70.2 cm) from the wall |
Profile | Sits 1.25? (3.2 cm) from the wall
Integrated cable management |
Styling
Misc. Specs
Product Weight (lbs.) | 36.4 |
Tilt | Yes |
Mount Type | Full Motion (Articulating) |
TV Size's up to (in.) | 80 |
Weight Capacity (lbs.) | 135 |
Manufacturer Warranty | 5 Year |
