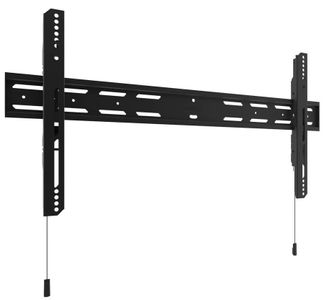

The mounting brackets come equipped with adjustable screws to facilitate precision leveling, Torx screws to protect against theft, and quick-release cords for easy removal of your TV. Along with a 6-inch extension bit to conveniently access the security and leveling screws after mounting your TV, the PF400 comes with all the necessary hardware for wood stud and concrete installations.
The PF400’s slim wall plate and mounting brackets allow your TV to sit 1.4? from the wall.
Measuring 35? wide, the solid steel wall plate can be installed across three studs with 16? spacing, or two studs with 24? spacing.
Precision leveling can be achieved with two adjustable screws. Use the provided 6? extension bit to easily access the leveling screws after your TV has been mounted.
Two Torx screws can be tightened using the provided key and extension bit to prevent your TV from being removed.
Removing your TV from the wall is as easy as pulling on two quick release cords. Each cord includes a magnetic end, allowing them to be tucked neatly out of sight.
|Profile||Sits 1.4? (3.5 cm) from the wall|
|Material||Solid steel with durable powder coated finish; Integrated cable management; Adjustable horizontal leveling; Magnetic quick-release cords; Lockable arms|
|Includes||Installation Manual; All mounting hardware for wood stud and concrete installation|
|TV Sizes||40” to 90”|
|Weight Allowances||200 lb (91 kg)|
|VESA Sizes||100×100 to 800×400|
|Wall Plate||34.8” (88.4 cm) wall plate allows mounting to three 16” studs, or offsetting on 24” stud centers|
|Shipping Box Weight||9.3 lb (4.2 kg)|
|Shipping Box Dimensions||36.2? x 6.8? x 3.3? (91.9 x 17.3 x 8.4 cm)|
|Product Weight||6.6 lb (3 kg)|
|Product Weight (lbs.)||6.6|
|TV Size's up to (in.)||90|
|Weight Capacity (lbs.)||200|
|Manufacturer Warranty||5 Year|
