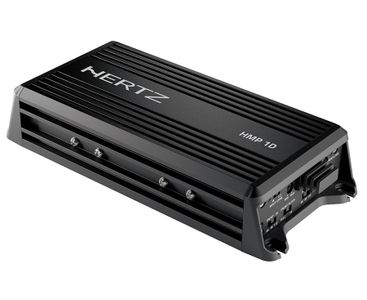

Thanks to the ultra-compact cast-aluminium chassis (IP64 rated), the HMP 1D amplifiers is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter.
Channel mode | 1 |
---|---|
Output Power (RMS) @ 14.4 VDC | 180 W x 1 (4 Ω); 300 W x 1 (2 Ω) |
Bypass | Yes |
Lo-Pass Filter | 65-85-115 Hz @ 12 dB/Oct. |
Subsonic | Off-22-32 Hz @ 12 dB/Oct. |
Distortion - THD (100Hz @ 4Ω) | 0.1 % |
S/N Ratio (A weighted @ 1V) | 105 dB |
Damping factor (100Hz @ 4Ω) | 300 |
Size W x D x H mm (in.) | 223 x 100.5 x 43.6 / 8.77 x 3.95 x 1.71 |
Color | Black |
---|---|
Depth (in.) | 3.95 |
Width (in.) | 8.77 |
Height (in.) | 1.71 |
Bluetooth Capable | No |
Amplifier Channels | Mono Block |
Water Resistant | No |
Digital Input | No |
Shallow Mount | No |
Speaker Level Input | No |
The Front End section features a complete and bypassable crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results. The level of HMP 1 D amplifiers can be remote controlled with the included HRC BM (Hertz Remote Control Bass Management). Connected to the Remote Control plug, this provides extremely precise volume level from the comfort of your seat.
The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.
Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marinegrade (epoxy coated) PCB boards.
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
IP64 Certification
Distortion - THD (100Hz @ 4Ω): 0.1 %
S/N Ratio (A weighted @ 1V): 105 dB
Channel mode | 1 |
Output Power (RMS) @ 14.4 VDC | 180 W x 1 (4 Ω); 300 W x 1 (2 Ω) |
Bypass | Yes |
Lo-Pass Filter | 65-85-115 Hz @ 12 dB/Oct. |
Subsonic | Off-22-32 Hz @ 12 dB/Oct. |
Distortion - THD (100Hz @ 4Ω) | 0.1 % |
S/N Ratio (A weighted @ 1V) | 105 dB |
Damping factor (100Hz @ 4Ω) | 300 |
Size W x D x H mm (in.) | 223 x 100.5 x 43.6 / 8.77 x 3.95 x 1.71 |
Color | Black |
Depth (in.) | 3.95 |
Width (in.) | 8.77 |
Height (in.) | 1.71 |
Bluetooth Capable | No |
Amplifier Channels | Mono Block |
Water Resistant | No |
Digital Input | No |
Shallow Mount | No |
Speaker Level Input | No |
