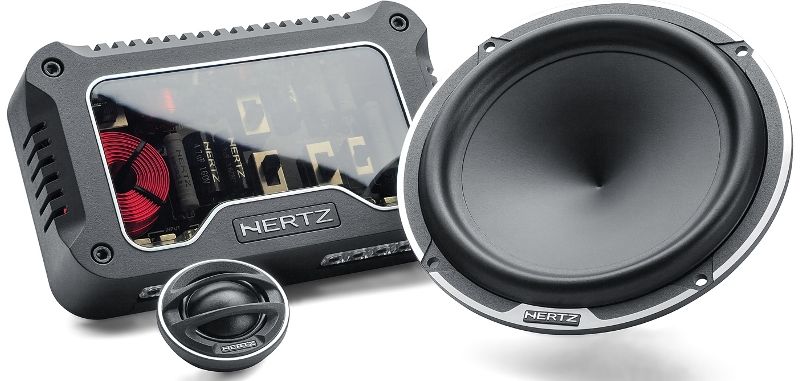

Through a solidly built switch, the MLCX 2 TW.3 crossover provides the ability to realize a bi-amplified system, that is, to connect two amplifiers, or anyway two separate channels, to the crossover, so making it possible to drive woofer and tweeter separately. The significant power increase with this configuration highlights all the features of the MLK 1650.3 Legend system, with all the advantages coming from the multi-amplification.
Besides, thanks to the Mid-Contour and Hi-Countor controls, dedicated to the management of woofer cut-off frequency and tweeter cut-off frequency respectively, the cross-point can be varied. Through each of these two “Countor” controls, featuring a two-position selector, the system frequency response can be fine-tuned, adjusting it according to the different acoustics of the cars and the different speaker placements and, most of all, the listener can achieve thieir favourite sound.
|Power Handling - Peak W||300|
|Power Handling - Continuous W||150|
|Frequency response Hz||40 ÷ 25k|
|Sensitivity dB SPL||92|
|Voice coil Ø mm (in.)||Woofer 36 (1.4) Tweeter 28 (1.1)|
|Woofer size mm (in.)||165 (6.5)|
|Tweeter size mm (in.)||28 (1)|
|Woofer cone||Pressed-pulp cone with cotton fibres|
|Crossover type||2 Way Passive Crossover|
|Crossover cut off||2.5 kHz (Mid/Hi-Cont. = ON) 3.5 kHz (Mid/Hi-Cont. = OFF)|
|Car Speaker Size||6.5|
|Mounting Hardware Included||Yes|
|Rms Power Handling||150|
|Peak Power Rating (Watts)||300|
