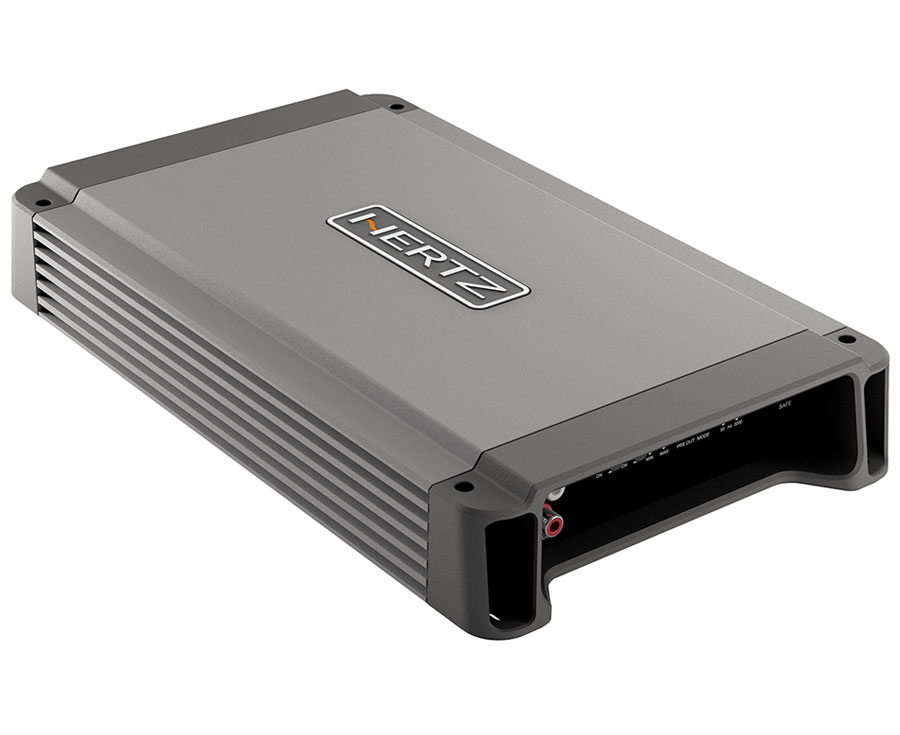

To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built up heat is then directed to the special dissipation “wings” along the side of the amplifier. Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results. The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies. More specifically HCP 2 MX features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer.
|Channel mode||2 - 1|
|Output Power (RMS) @ 14.4 VDC||2 Ch: 120 W x 2 (4Ω), 2 Ch: 200 W x 2 (2Ω), 1 Ch: 400 W x 1 (4Ω)|
|Hi-Pass Filter||50 ÷ 3200 Hz @ 12 dB/Oct.|
|Lo-Pass Filter||50 ÷ 3200 Hz @ 12 dB/Oct.|
|Distortion - THD (100Hz @ 4Ω)||0.03 %|
|S/N Ratio (A weighted @ 1V)||105 dB|
|Damping factor (100Hz @ 4Ω)||300|
|Size W x D x H mm (in.)||315 x 190 x 50 (12.40 x 7.48 x 1.97)|
|Amplifier Class||Class AB|
|Speaker Level Input||Yes|
