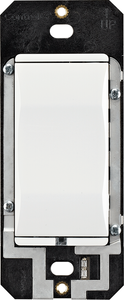

Control4® White Auxiliary Keypad
Control4® White Auxiliary Keypad 0
Control4® White Auxiliary Keypad 1

Control4® White Auxiliary Keypad

Model #: C4-KA-WH
218599
Control4
At a Glance
Control4 Keypads provide a stunning interface for your Control4 Smart Home system, combining flexible button configuration with beautiful aesthetics to complement the decor of your home. With the simple press of a button, you can activate a scene, allowing events to happen simultaneously.
Available in Store Only

Get to know this product.

This economical solution for three-way control of a load uses existing in-wall three-way wiring to wire directly to any compatible Control4 Dimmer, Switch, or Fan-Speed Controller. Available in 9 stylish colors and finishes. 120V/277V.

  • Provides full control of the load attached to the associated Dimmer, Switch, or Fan-Speed Controller
  • Communicates directly with the load-control device over the existing 3-way wiring
  • Capable of controlling the load even without the automation system in place
  • Available in a wide array of gloss and satin colors (See Available Colors)
  • Control4® screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)
  • Elegant, sophisticated design makes a beautiful addition to any home or business
  • Use up to ten Auxiliary Keypads with a single load-control device
  • Available in 120V or 277V

*Faceplates are not included. Don’t forget to order faceplates separately.

Useful Documents
Installation Guide
Specification Sheet
Specifications

Power

Power Requirements110-277 VAC +/-10% 50/60 Hz

Environmental

Operational Temperature32° F - 104° F (0° C - 40° C)
Humidity5% to 95% non-condensing
Storage-4° F - 158° F (-20° C - 70° C)

Miscellaneous

Wallbox Volume4.75 cubic inches
Shipping Weight0.12 lb. (0.05 kg)

Available Colors

C4-KA-xxWH, LA, IV, BR, BL, SW, MB, BI, AU

Available Accessories

Faceplate, 1 Gang (C4-FP1-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 2 Gang (C4-FP2-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 3 Gang (C4-FP3-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 4 Gang (C4-FP4-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Color Kit (C4-CKKA-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU

Misc. Specs

ColorWhite
Color Finish NameWhite
Manufacturer WarrantyLimited Warranty. See store for full details.
Product Weight (lbs.)0.07
WarningProposition 65 Warning for California Residents
