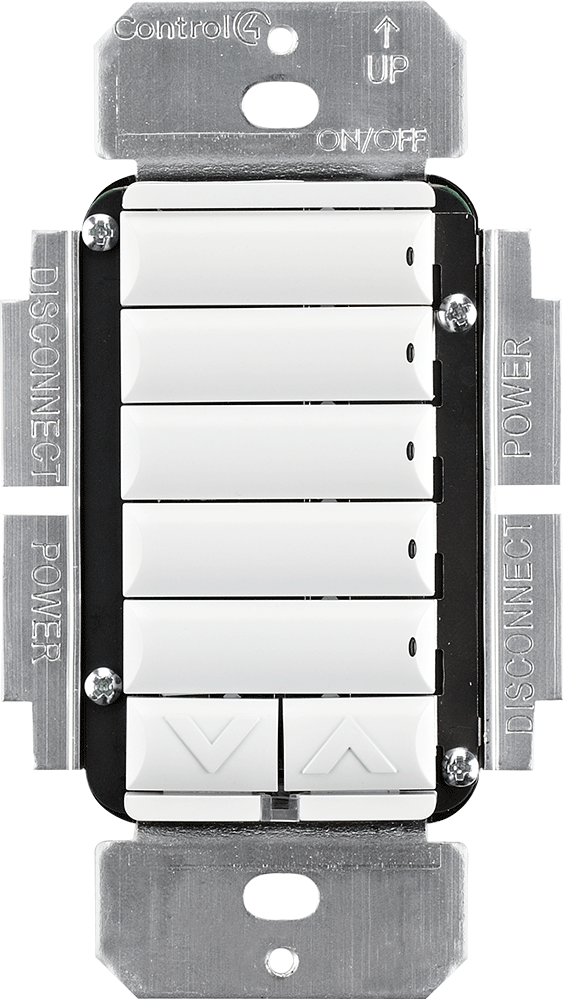

Control4® 120V Snow White Keypad Dimmer

Model #: C4-KD120-SW

At a Glance

This is basically the Adaptive Phase Dimmer melded to a Configurable Keypad. Can be hard-wired to a lighting load. Incandescent; Halogen; Electronic (Solid State) Low Voltage (ELV) Transformers, Magnetic (Iron Core, Inductive) Low Voltage (MLV) Transformers; Phase-Dimmable Fluorescents, Compact Fluorescents, and LEDs. Can design custom button layouts.

WarningProposition 65 Warning for California Residents
Control4® 120V Snow White Keypad Dimmer

Load Types and Ratings

Supported Load TypesIncandescent, halogen, electronic (solid state) low-voltage (ELV) transformers, magnetic (iron core, inductive) low-voltage (MLV) transformers, phase-dimmable fluorescents, compact fluorescents, and LEDs.

Available Colors

C4-KD120-xx and C4-KD277-xxWH, LA, IV, BR, BL, SW, MB, BI, AU

General Specs

ColorWhite
Product Weight (lbs.)0.12

Power

Power Requirements120VAC +/-10%, 50/60 Hz This device can function with or without a neutral AC connection depending on load type.
Power Consumption786mW

Environmental

Operational Temperature32°F ~ 104°F (0°C ~ 40°C) All load ratings are based on an ambient temperature of 77°F (25°C).
Humidity5% to 95% non-condensing
Storage-4°F ~ 158°F (-20°C ~ 70°C)

Miscellaneous

Control CommunicationsZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel, spread-spectrum radio
Wallbox Volume5.75 cubic inches
Shipping Weight0.22 lb. (0.10 kg)

Available Accessories

Faceplate, 1 Gang (C4-FP1-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 2 Gang (C4-FP2-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 3 Gang (C4-FP3-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 4 Gang (C4-FP4-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Color Kit (C4-CKKD-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Single High (C4-EBD1H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Double High (C4-EBD2H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Triple High (C4-EBD3H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU

Control4® 120V Snow White Keypad Dimmer

Model #: C4-KD120-SW
218901
Control4

See Price in Cart

At a Glance

This is basically the Adaptive Phase Dimmer melded to a Configurable Keypad. Can be hard-wired to a lighting load. Incandescent; Halogen; Electronic (Solid State) Low Voltage (ELV) Transformers, Magnetic (Iron Core, Inductive) Low Voltage (MLV) Transformers; Phase-Dimmable Fluorescents, Compact Fluorescents, and LEDs. Can design custom button layouts.

Get to know this product.

Transform a standard light switch or dimmer into a fully customizable keypad and dimmer. This product combines the dimming capabilities of the Control4 Wireless Adaptive Phase Dimmer with the flexibility of the Control4 Wireless Configurable Keypad for truly personalized smart lighting control. Available in 9 stylish colors and finishes. 120V, 240V, or 277V.

Turns a standard light switch or dimmer into a fully customizable keypad and dimmer

Includes a button kit with every button necessary to make any of the 37 possible button configurations

Compatible with a variety of load types including LEDs, Incandescent, Halogen, Electronic Low Voltage (solid state) Transformers, Magnetic (iron core) Low Voltage Transformers, Fluorescents, Compact Fluorescents

Supports both forward phase (leading edge) and reverse phase (trailing edge) dimming

Automatically detects load type and determines the appropriate dimming type

Protection circuitry prevents device damage in case of short circuit or excessive load

Continuously measures energy being used by the attached load

Elegant, sophisticated design makes a beautiful addition to any home or business

Custom engraving available to clearly identify each button

Backlit button engraving with programmable color control for easy readability regardless of time of day or light level

Programmable RGB LEDs provide status feedback for lighting and other devices in the system

Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room

Available in a wide array of gloss and satin colors (See Available Colors)

Control4® screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)

California Title 20 compliant

*Faceplates are not included. Don’t forget to order faceplates separately.

Specifications

General Specs

ColorWhite
Product Weight (lbs.)0.12

Power

Power Requirements120VAC +/-10%, 50/60 Hz This device can function with or without a neutral AC connection depending on load type.
Power Consumption786mW

Load Types and Ratings

Supported Load TypesIncandescent, halogen, electronic (solid state) low-voltage (ELV) transformers, magnetic (iron core, inductive) low-voltage (MLV) transformers, phase-dimmable fluorescents, compact fluorescents, and LEDs.

Environmental

Operational Temperature32°F ~ 104°F (0°C ~ 40°C) All load ratings are based on an ambient temperature of 77°F (25°C).
Humidity5% to 95% non-condensing
Storage-4°F ~ 158°F (-20°C ~ 70°C)

Miscellaneous

Control CommunicationsZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel, spread-spectrum radio
Wallbox Volume5.75 cubic inches
Shipping Weight0.22 lb. (0.10 kg)

Available Colors

C4-KD120-xx and C4-KD277-xxWH, LA, IV, BR, BL, SW, MB, BI, AU

Available Accessories

Faceplate, 1 Gang (C4-FP1-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 2 Gang (C4-FP2-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 3 Gang (C4-FP3-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 4 Gang (C4-FP4-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Color Kit (C4-CKKD-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Single High (C4-EBD1H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Double High (C4-EBD2H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Triple High (C4-EBD3H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
WarningProposition 65 Warning for California Residents
