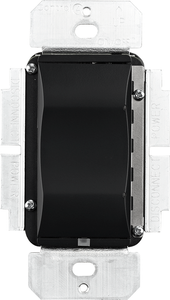

The Control4® Wireless Adaptive Phase Dimmer is the dimmer of choice for virtually any load type. This dimmer eliminates much of the guess-work associated with choosing the right dimmer for the job and prevents the need to replace the dimmer if the load type changes in the future. Available in 9 stylish colors and finishes. 120V, 240V, or 277V.
*Faceplates are not included. Don’t forget to order faceplates separately.
|Faceplate, 1 Gang (C4-FP1-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Faceplate, 2 Gang (C4-FP2-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Faceplate, 3 Gang (C4-FP3-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Faceplate, 4 Gang (C4-FP4-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Color Kit (C4-CKFPDAPD-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU|
|Engraved Button, Rocker (C4-EBDR-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU|
|C4-APD120-xx||WH, LA, IV, BR, BL, SW, MB, BI, AU|
|Operational Temperature||32°F ~ 104°F (0°C ~ 40°C) All load ratings are based on an ambient temperature of 77°F (25°C).|
|Humidity||5% to 95% non-condensing|
|Storage||-4°F ~ 158°F (-20°C ~ 70°C)|
|Supported Load Types||Incandescent, halogen; electronic (solid state) low-voltage (ELV) transformers, magnetic (iron core, inductive) low-voltage (MLV) transformers, phase-dimmable fluorescents, compact fluorescents, and LEDs|
|Control Communications||ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel, spread-spectrum radio|
|Wallbox Volume||5.75 cubic inches|
|Shipping Weight||0.18 lb. (0.08 kg)|
|Power Requirements||120VAC +/-10%, 50/60 Hz This device can function with or without a neutral AC connection depending on load type.|
|Color Finish Name||Midnight Black|
|Manufacturer Warranty||Limited Warranty. See store for full details.|
