Control4® 120V Legacy Light Almond Keypad Dimmer
At a Glance
This is basically the Adaptive Phase Dimmer melded to a Configurable Keypad. Can be hard-wired to a lighting load. Incandescent; Halogen; Electronic (Solid State) Low Voltage (ELV) Transformers, Magnetic (Iron Core, Inductive) Low Voltage (MLV) Transformers; Phase-Dimmable Fluorescents, Compact Fluorescents, and LEDs. Can design custom button layouts.
Proposition 65 Warning for California Residents
Load Types and Ratings
| Supported Load Types | Incandescent, halogen, electronic (solid state) low-voltage (ELV) transformers, magnetic (iron core, inductive) low-voltage (MLV) transformers, phase-dimmable fluorescents, compact fluorescents, and LEDs. |
|---|
Available Colors
| C4-KD120-xx and C4-KD277-xx | WH, LA, IV, BR, BL, SW, MB, BI, AU |
|---|
Power
| Power Requirements | 120VAC +/-10%, 50/60 Hz This device can function with or without a neutral AC connection depending on load type. |
|---|---|
| Power Consumption | 786mW |
Environmental
| Operational Temperature | 32°F ~ 104°F (0°C ~ 40°C) All load ratings are based on an ambient temperature of 77°F (25°C). |
|---|---|
| Humidity | 5% to 95% non-condensing |
| Storage | -4°F ~ 158°F (-20°C ~ 70°C) |
Miscellaneous
| Control Communications | ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel, spread-spectrum radio |
|---|---|
| Wallbox Volume | 5.75 cubic inches |
| Shipping Weight | 0.22 lb. (0.10 kg) |
Misc. Specs
| Color | Beige |
|---|---|
| Color Finish Name | Legacy Light Almond |
| Product Weight (lbs.) | 0.12 |
Available Accessories
| Faceplate, 1 Gang (C4-FP1-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
|---|---|
| Faceplate, 2 Gang (C4-FP2-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Faceplate, 3 Gang (C4-FP3-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Faceplate, 4 Gang (C4-FP4-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Color Kit (C4-CKKD-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |
| Engraved Button, Single High (C4-EBD1H-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |
| Engraved Button, Double High (C4-EBD2H-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |
| Engraved Button, Triple High (C4-EBD3H-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |

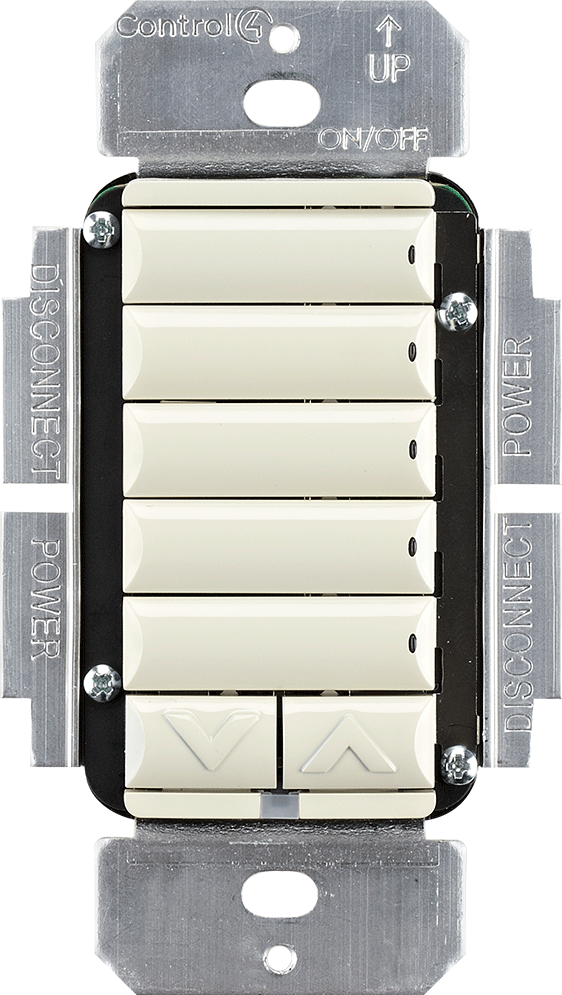

Control4® 120V Legacy Light Almond Keypad Dimmer
Model #: C4-KD120-LL
At a Glance
Get to know this product.
Transform a standard light switch or dimmer into a fully customizable keypad and dimmer. This product combines the dimming capabilities of the Control4 Wireless Adaptive Phase Dimmer with the flexibility of the Control4 Wireless Configurable Keypad for truly personalized smart lighting control. Available in 9 stylish colors and finishes. 120V, 240V, or 277V.
Turns a standard light switch or dimmer into a fully customizable keypad and dimmer
Includes a button kit with every button necessary to make any of the 37 possible button configurations
Compatible with a variety of load types including LEDs, Incandescent, Halogen, Electronic Low Voltage (solid state) Transformers, Magnetic (iron core) Low Voltage Transformers, Fluorescents, Compact Fluorescents
Supports both forward phase (leading edge) and reverse phase (trailing edge) dimming
Automatically detects load type and determines the appropriate dimming type
Protection circuitry prevents device damage in case of short circuit or excessive load
Continuously measures energy being used by the attached load
Elegant, sophisticated design makes a beautiful addition to any home or business
Custom engraving available to clearly identify each button
Backlit button engraving with programmable color control for easy readability regardless of time of day or light level
Programmable RGB LEDs provide status feedback for lighting and other devices in the system
Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
Available in a wide array of gloss and satin colors (See Available Colors)
Control4® screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)
California Title 20 compliant
*Faceplates are not included. Don’t forget to order faceplates separately.
