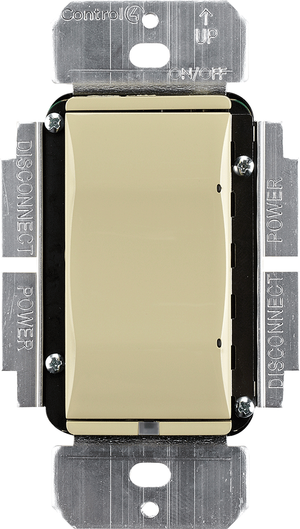

An economical solution for dimming forward phase compatible loads, including incandescent, line-voltage halogens, and magnetic transformers, the Forward Phase Dimmer is also great for dimming high-wattage loads such as chandeliers and large banks of recessed lights. It is compatible with forward phase dimmable LEDs, CFLs, and fluorescents. Available in 9 stylish colors and finishes. 120V.
*Faceplates are not included. Don’t forget to order faceplates separately.
|Power Requirements||120 VAC +/-10%, 50/60 Hz This device can function with or without a neutral AC connection depending on load type.|
|Supported Load Types||Incandescent, halogen, magnetic (iron core, inductive) low-voltage (MLV) transformers, forward-phase dimmable fluorescents, compact fluorescents, and LEDs.|
|Operational Temperature||32°F ~ 104°F (0°C ~ 40°C) All load ratings are based on an ambient temperature of 77°F (25°C).|
|Humidity||5% to 95% non-condensing|
|Storage||-4°F ~ 158°F (-20°C ~ 70°C)|
|Control Communications||ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel, spread-spectrum radio|
|Wall Box Volume||5.75 cubic inches|
|Shipping Weight||0.18 lb. (0.08 kg)|
|C4-FPD120-xx||WH, LA, IV, BR, BL, SW, MB, BI, AU|
|Faceplate, 1 Gang (C4-FP1-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Faceplate, 2 Gang (C4-FP2-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Faceplate, 3 Gang (C4-FP3-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Faceplate, 4 Gang (C4-FP4-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Color Kit (C4-CKFPDAPD-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU|
|Engraved Button, Rocker (C4-EBDR-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU|
|Color Finish Name||Ivory|
|Manufacturer Warranty||Limited Warranty. See store for full details.|
|Product Weight (lbs.)||0.12|
