Control4® 120V Ivory Adaptive Phase Dimmer
At a Glance
Control4 Dimmers allow you to replace any "dumb" dimmers with sleek, sophisticated dimmers that will not only provide elegant control of the lighting inside or outside of your home, but can also be programmed to respond automatically to desired light levels.
Proposition 65 Warning for California Residents
Available Colors
| C4-APD120-xx | WH, LA, IV, BR, BL, SW, MB, BI, AU |
|---|
Load Types and Rating
| Supported Load Types | Incandescent, halogen; electronic (solid state) low-voltage (ELV) transformers, magnetic (iron core, inductive) low-voltage (MLV) transformers, phase-dimmable fluorescents, compact fluorescents, and LEDs |
|---|
Power
| Power Requirements | 120VAC +/-10%, 50/60 Hz This device can function with or without a neutral AC connection depending on load type. |
|---|---|
| Power Consumption | 714mW |
Environmental
| Operational Temperature | 32°F ~ 104°F (0°C ~ 40°C) All load ratings are based on an ambient temperature of 77°F (25°C). |
|---|---|
| Humidity | 5% to 95% non-condensing |
| Storage | -4°F ~ 158°F (-20°C ~ 70°C) |
Miscellaneous
| Control Communications | ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel, spread-spectrum radio |
|---|---|
| Wallbox Volume | 5.75 cubic inches |
| Shipping Weight | 0.18 lb. (0.08 kg) |
Misc. Specs
| Color | Beige |
|---|---|
| Color Finish Name | Ivory |
| Product Weight (lbs.) | 0.12 |
Available Accessories
| Faceplate, 1 Gang (C4-FP1-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
|---|---|
| Faceplate, 2 Gang (C4-FP2-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Faceplate, 3 Gang (C4-FP3-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Faceplate, 4 Gang (C4-FP4-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Color Kit (C4-CKFPDAPD-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |
| Engraved Button, Rocker (C4-EBDR-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |

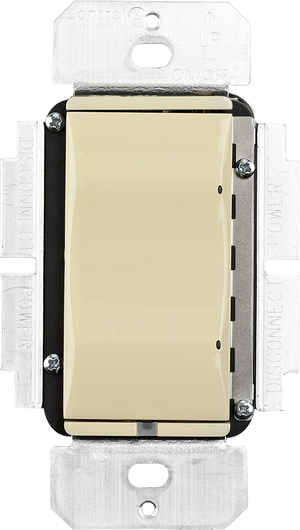

Control4® 120V Ivory Adaptive Phase Dimmer
Model #: C4-APD120-IV
At a Glance
Get to know this product.
The Control4® Wireless Adaptive Phase Dimmer is the dimmer of choice for virtually any load type. This dimmer eliminates much of the guess-work associated with choosing the right dimmer for the job and prevents the need to replace the dimmer if the load type changes in the future. Available in 9 stylish colors and finishes. 120V, 240V, or 277V.
Compatible with a variety of load types including LEDs, Incandescent, Halogen, Electronic Low Voltage (solid state) Transformers, Magnetic (iron core) Low Voltage Transformers, Fluorescents, and Compact Fluorescents
Supports both forward phase (leading edge) and reverse phase (trailing edge) dimming
Automatically detects load type and determines the appropriate dimming type
Protection circuitry prevents device damage in case of short circuit or excessive load
Continuously measures energy being used by the attached load
Elegant, sophisticated design makes a beautiful addition to any home or business
Custom engraving available to clearly identify which light each dimmer control
Backlit button engraving with programmable color control for easy readability regardless of time of day or light level
Programmable RGB LEDs provide status feedback for lighting and other devices in the system
Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
Available in a wide array of gloss and satin colors (See Available Colors)
Control4® screw-less faceplates, sold separately
California Title 20 compliant
*Faceplates are not included. Don’t forget to order faceplates separately.
