Control4® 120V/277V Snow White Configurable Keypad-C4-KC120277-SW

Model #: C4-KC120277-SW
218740
Control4
At a Glance

An elegant and customizable user interface that unlocks the power of one-touch automation, enabling control of lighting, audio, video, security, climate and more.

Call for Best Price
$99,999.00Save

Get to know this product.

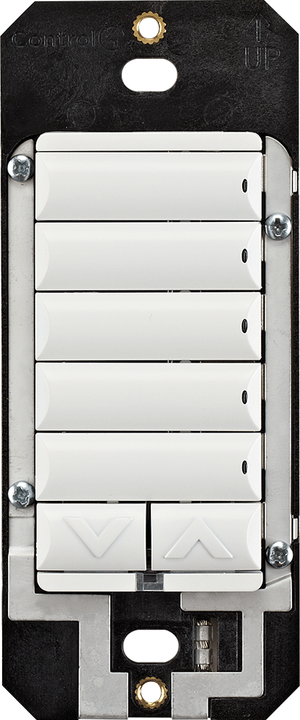

The Control4® Wireless Configurable Keypad is an elegant and customizable user interface that unlocks the power of one-touch automation. The keypad can be configured to control almost anything from your music, garage doors, security systems, lights and more. The keypad can be configured with two to seven buttons using four different button sizes for a total of 37 possible configurations. Personalize the keypads based on how your system is set up using custom backlit engraving on each button. Available in 9 fashionable colors and finishes.

  • Includes a button kit with every button necessary to make any of the 37 possible button configurations
  • Elegant, sophisticated design makes a beautiful addition to any home or business
  • Custom engraving available to clearly identify each button
  • Backlit button engraving with programmable color control for easy readability regardless of time of day or light level
  • Programmable RGB LEDs provide status feedback for lighting and other devices in the system
  • Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
  • Available in a wide array of gloss and satin colors (See Available Colors)
  • Control4® screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)
  • Power via line (mains) voltage or via the Control4 36VDC Keypad Power Supply

*Faceplates are not included. Don’t forget to order faceplates separately.

Specifications

Power

Power Requirements110-277VAC +/-10%, 50/60Hz or 36VDC This device requires a neutral AC connection.
Power Consumption120V: 350mW and 277V: 540mW

Environmental

Operational Temperature32° F - 104° F (0° C - 40° C)
Humidity5% to 95% non-condensing
Storage-4° F – 158° F (-20° C – 70° C)

Miscellaneous

Control CommunicationsZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum radio
Wallbox Volume4.75 cubic inches (77.8 cubic centimeters)
Shipping Weight0.18 lb. (0.08 kg)

Available Colors

C4-KC120277-xxWH, LA, IV, BR, BL, SW, MB, BI, AU

Available Accessories

Faceplate, 1 Gang (C4-FP1-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 2 Gang (C4-FP2-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 3 Gang (C4-FP3-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 4 Gang (C4-FP4-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Color Kit (C4-CKKC-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Single High (C4-EBD1H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Double High (C4-EBD2H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Triple High (C4-EBD3H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU

Misc. Specs

ColorWhite
Color Finish NameSnow White
Manufacturer WarrantyLimited Warranty. See store for full details.
Product Weight0.12
WarningProposition 65 Warning for California Residents
