Control4® 120V/277V Light Almond Switch
At a Glance
The Control4® Wireless Switch provides on/off control for a variety of load types. With its robust relay and high amperage rating, the Switch can handle even high in-rush loads such as fountain pumps or large banks of fluorescent lights. It can even be used to switch wall outlets.
Proposition 65 Warning for California Residents
Available Colors
| C4-SW120277 and C4-SW240 | WH, LA, IV, BR, BL, SW, MB, BI, AU |
|---|
Power
| Power Requirements | 110-277VAC +/-10%, 50/60Hz |
|---|---|
| Power Consumption | 120V: 400mW and 277: 1150mW |
Load Types and Ratings
| Supported Load Types | Incandescent, Halogen, Electronic (Solid State) Low Voltage (ELV) Transformers, Magnetic (Iron Core, Inductive) Low Voltage (MLV) Transformers, Fluorescents, Compact Fluorescents, LEDs, Motors |
|---|---|
| Maximum Load | 120V: 15A, 1/2HP and 277V: 8A, 1/2HP |
Environmental
| Operational Temperature | 32° F – 104° F (0° C – 40° C) |
|---|---|
| Humidity | 5% to 95% non-condensing |
| Storage | -4° F – 158° F (-20° C – 70° C) |
Miscellaneous
| Control Communications | ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum radio |
|---|---|
| Wallbox Volume | 5.75 cubic inches (94.2 cubic centimeters) |
| Shipping Weight | 0.18 lb (0.08 kg) |
Misc. Specs
| Color | Brown |
|---|---|
| Color Finish Name | Light Almond |
| Product Weight (lbs.) | 0.12 |
Available Accessories
| Faceplate, 1 Gang (C4-FP1-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
|---|---|
| Faceplate, 2 Gang (C4-FP2-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Faceplate, 3 Gang (C4-FP3-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Faceplate, 4 Gang (C4-FP4-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Color Kit (C4-CKSWITCH-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |
| Engraved Button, Rocker (C4-EBDR-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |

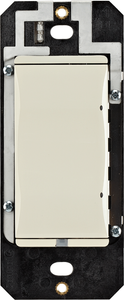

Control4® 120V/277V Light Almond Switch
Model #: C4-SW120277-LA
At a Glance
Get to know this product.
Get on/off control for virtually every type of load, including LED lights, incandescents, halogens, electronic low voltage (solid state) transformers, magnetic (iron core) low voltage transformers, fluorescents, compact fluorescents, and motors, including ceiling fans and bathroom ventilation fans. The Wireless Switch also handles high in-rush loads such as fountain pumps or large banks of fluorescent lights and can be used to switch wall outlets. Available in 9 stylish colors and finishes. 120V/277V or 240V.
Compatible with a variety of load types including Incandescent, Halogen, Electronic Low Voltage (solid state) Transformers, Magnetic (iron core) Low Voltage Transformers, Fluorescents, Compact Fluorescents, LEDs and Motors
Continuously measures energy being used by the attached load
Elegant, sophisticated design makes a beautiful addition to any home or business
Custom engraving available to clearly identify which light each switch controls
Backlit button engraving with programmable color control for easy readability regardless of time of day or light level
Programmable RGB LEDs provide status feedback for lighting and other devices in the system
Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
Available in a wide array of gloss and satin colors (See Available Colors)
Control4® screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)
*Faceplates are not included. Don’t forget to order faceplates separately.
