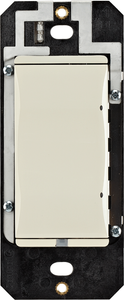

Get on/off control for virtually every type of load, including LED lights, incandescents, halogens, electronic low voltage (solid state) transformers, magnetic (iron core) low voltage transformers, fluorescents, compact fluorescents, and motors, including ceiling fans and bathroom ventilation fans. The Wireless Switch also handles high in-rush loads such as fountain pumps or large banks of fluorescent lights and can be used to switch wall outlets. Available in 9 stylish colors and finishes. 120V/277V or 240V.
*Faceplates are not included. Don’t forget to order faceplates separately.
|Power Requirements||110-277VAC +/-10%, 50/60Hz|
|Power Consumption||120V: 400mW and 277: 1150mW|
|Supported Load Types||Incandescent, Halogen, Electronic (Solid State) Low Voltage (ELV) Transformers, Magnetic (Iron Core, Inductive) Low Voltage (MLV) Transformers, Fluorescents, Compact Fluorescents, LEDs, Motors|
|Maximum Load||120V: 15A, 1/2HP and 277V: 8A, 1/2HP|
|Operational Temperature||32° F – 104° F (0° C – 40° C)|
|Humidity||5% to 95% non-condensing|
|Storage||-4° F – 158° F (-20° C – 70° C)|
|Control Communications||ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum radio|
|Wallbox Volume||5.75 cubic inches (94.2 cubic centimeters)|
|Shipping Weight||0.18 lb (0.08 kg)|
|C4-SW120277 and C4-SW240||WH, LA, IV, BR, BL, SW, MB, BI, AU|
|Faceplate, 1 Gang (C4-FP1-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Faceplate, 2 Gang (C4-FP2-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Faceplate, 3 Gang (C4-FP3-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Faceplate, 4 Gang (C4-FP4-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Color Kit (C4-CKSWITCH-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU|
|Engraved Button, Rocker (C4-EBDR-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU|
|Color Finish Name||Legacy Light Almond|
|Product Weight (lbs.)||0.12|
