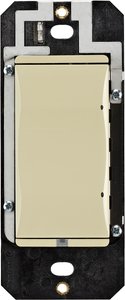

Control4® 120V/277V Ivory Switch-C4-SW120277-IV

Model #: C4-SW120277-IV
219002
Control4
At a Glance

The Control4® Wireless Switch provides on/off control for a variety of load types. With its robust relay and high amperage rating, the Switch can handle even high in-rush loads such as fountain pumps or large banks of fluorescent lights. It can even be used to switch wall outlets.

Call for Best Price
$99,999.00Save

Get to know this product.

Get on/off control for virtually every type of load, including LED lights, incandescents, halogens, electronic low voltage (solid state) transformers, magnetic (iron core) low voltage transformers, fluorescents, compact fluorescents, and motors, including ceiling fans and bathroom ventilation fans. The Wireless Switch also handles high in-rush loads such as fountain pumps or large banks of fluorescent lights and can be used to switch wall outlets. Available in 9 stylish colors and finishes. 120V/277V or 240V.

  • Compatible with a variety of load types including Incandescent, Halogen, Electronic Low Voltage (solid state) Transformers, Magnetic (iron core) Low Voltage Transformers, Fluorescents, Compact Fluorescents, LEDs and Motors
  • Continuously measures energy being used by the attached load
  • Elegant, sophisticated design makes a beautiful addition to any home or business
  • Custom engraving available to clearly identify which light each switch controls
  • Backlit button engraving with programmable color control for easy readability regardless of time of day or light level
  • Programmable RGB LEDs provide status feedback for lighting and other devices in the system
  • Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
  • Available in a wide array of gloss and satin colors (See Available Colors)
  • Control4® screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)

*Faceplates are not included. Don’t forget to order faceplates separately.

Specifications

Power

Power Requirements110-277VAC +/-10%, 50/60Hz
Power Consumption120V: 400mW and 277: 1150mW

Load Types and Ratings

Supported Load TypesIncandescent, Halogen, Electronic (Solid State) Low Voltage (ELV) Transformers, Magnetic (Iron Core, Inductive) Low Voltage (MLV) Transformers, Fluorescents, Compact Fluorescents, LEDs, Motors
Maximum Load120V: 15A, 1/2HP and 277V: 8A, 1/2HP

Environmental

Operational Temperature32° F – 104° F (0° C – 40° C)
Humidity5% to 95% non-condensing
Storage-4° F – 158° F (-20° C – 70° C)

Miscellaneous

Control CommunicationsZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum radio
Wallbox Volume5.75 cubic inches (94.2 cubic centimeters)
Shipping Weight0.18 lb (0.08 kg)

Available Colors

C4-SW120277 and C4-SW240WH, LA, IV, BR, BL, SW, MB, BI, AU

Available Accessories

Faceplate, 1 Gang (C4-FP1-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 2 Gang (C4-FP2-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 3 Gang (C4-FP3-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 4 Gang (C4-FP4-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Color Kit (C4-CKSWITCH-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Rocker (C4-EBDR-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU

Misc. Specs

ColorOff-White
Color Finish NameIvory
Manufacturer WarrantyLimited Warranty. See store for full details.
Product Weight0.12
WarningProposition 65 Warning for California Residents
