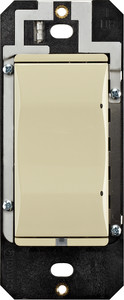

Experience elegant, in-wall control of the increasingly popular 4-wire 0-10V dimmable fluorescent ballasts and LED lights. Available in 9 stylish colors and finishes. 120V/277V or 240V.
*Faceplates are not included. Don’t forget to order faceplates separately.
|Power Requirements||110-277VAC +/-10%, 50/60Hz|
|Power Consumption||120V: 485 mW and 277V: 1.18 W|
|Supported Load Types||Four-wire 0-10V and 1-10V dimmable fluorescent ballasts and LEDs, sink or source.|
|Maximum Load (Switched Hot)||120V: 15A and 277V: 8A|
|Maximum Load (0-10V Control)||100mA sink or source|
|Operational Temperature||32° F – 104° F (0° C – 40° C) All load ratings are based on an ambient temperature of 25° C|
|Humidity||5% to 95% non-condensing|
|Storage||-4° F – 158° F (-20° C – 70° C)|
|Control Communications||ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum radio|
|Wallbox Volume||5.75 cubic inches|
|Shipping Weight||0.18 lb. (0.08 kg)|
|C4-TV120277-xx||WH, LA, IV, BR, BL, SW, MB, BI, AU|
|Faceplate, 1 Gang (C4-FP1-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Faceplate, 2 Gang (C4-FP2-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Faceplate, 3 Gang (C4-FP3-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Faceplate, 4 Gang (C4-FP4-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB|
|Color Kit (C4-CKFPDAPD-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU|
|Engraved Button, Rocker (C4-EBDR-xx)||WH, LA, IV, BR, BL, SW, MB, BI, AU|
|Color Finish Name||Ivory|
|Manufacturer Warranty||Limited Warranty. See store for full details.|
|Product Weight (lbs.)||0.12|
