Control4® 120V/277V Biscuit 0-10V Dimmer
At a Glance
Control4 Dimmers allow you to replace any "dumb" dimmers with sleek, sophisticated dimmers that will not only provide elegant control of the lighting inside or outside of your home, but can also be programmed to respond automatically to desired light levels.
Proposition 65 Warning for California Residents
Available Colors
| C4-TV120277-xx | WH, LA, IV, BR, BL, SW, MB, BI, AU |
|---|
Power
| Power Requirements | 110-277VAC +/-10%, 50/60Hz |
|---|---|
| Power Consumption | 120V: 485 mW and 277V: 1.18 W |
Load Types and Ratings
| Supported Load Types | Four-wire 0-10V and 1-10V dimmable fluorescent ballasts and LEDs, sink or source. |
|---|---|
| Maximum Load (Switched Hot) | 120V: 15A and 277V: 8A |
| Maximum Load (0-10V Control) | 100mA sink or source |
Environmental
| Operational Temperature | 32° F – 104° F (0° C – 40° C) All load ratings are based on an ambient temperature of 25° C |
|---|---|
| Humidity | 5% to 95% non-condensing |
| Storage | -4° F – 158° F (-20° C – 70° C) |
Miscellaneous
| Control Communications | ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum radio |
|---|---|
| Wallbox Volume | 5.75 cubic inches |
| Shipping Weight | 0.18 lb. (0.08 kg) |
Misc. Specs
| Color | Beige |
|---|---|
| Color Finish Name | Biscuit |
| Product Weight (lbs.) | 0.12 |
Available Accessories
| Faceplate, 1 Gang (C4-FP1-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
|---|---|
| Faceplate, 2 Gang (C4-FP2-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Faceplate, 3 Gang (C4-FP3-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Faceplate, 4 Gang (C4-FP4-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Color Kit (C4-CKFPDAPD-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |
| Engraved Button, Rocker (C4-EBDR-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |

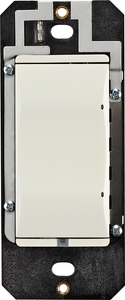

Control4® 120V/277V Biscuit 0-10V Dimmer
Model #: C4-TV120277-BI
At a Glance
Get to know this product.
Experience elegant, in-wall control of the increasingly popular 4-wire 0-10V dimmable fluorescent ballasts and LED lights. Available in 9 stylish colors and finishes. 120V/277V or 240V.
Available in a wide array of gloss and satin colors (See Available Colors)
Control4® screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)
Capable of sinking or sourcing 100mA for control of up to 50 ballasts
Built-in relay provides separate on/off control of line-voltage when required
Continuously measures energy being used by the attached load
Elegant, sophisticated design makes a beautiful addition to any home or business
Custom engraving available to clearly identify which light each dimmer controls
Backlit button engraving with programmable color control for easy readability regardless of time of day or light level
Programmable RGB LEDs provide status feedback for lighting and other devices in the system
Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
*Faceplates are not included. Don’t forget to order faceplates separately.
