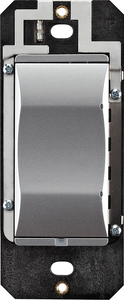

Control4® 120V/277V Aluminum 0-10V Dimmer-C4-TV120277-AU

Model #: C4-TV120277-AU
219247
Control4
At a Glance

Control4 Dimmers allow you to replace any "dumb" dimmers with sleek, sophisticated dimmers that will not only provide elegant control of the lighting inside or outside of your home, but can also be programmed to respond automatically to desired light levels.

Call for Best Price
$99,999.00Save

Get to know this product.

Experience elegant, in-wall control of the increasingly popular 4-wire 0-10V dimmable fluorescent ballasts and LED lights. Available in 9 stylish colors and finishes. 120V/277V or 240V.

  • Available in a wide array of gloss and satin colors (See Available Colors)
  • Control4® screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)
  • Capable of sinking or sourcing 100mA for control of up to 50 ballasts
  • Built-in relay provides separate on/off control of line-voltage when required
  • Continuously measures energy being used by the attached load
  • Elegant, sophisticated design makes a beautiful addition to any home or business
  • Custom engraving available to clearly identify which light each dimmer controls
  • Backlit button engraving with programmable color control for easy readability regardless of time of day or light level
  • Programmable RGB LEDs provide status feedback for lighting and other devices in the system
  • Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room

*Faceplates are not included. Don’t forget to order faceplates separately.

Specifications

Power

Power Requirements110-277VAC +/-10%, 50/60Hz
Power Consumption120V: 485 mW and 277V: 1.18 W

Load Types and Ratings

Supported Load TypesFour-wire 0-10V and 1-10V dimmable fluorescent ballasts and LEDs, sink or source.
Maximum Load (Switched Hot)120V: 15A and 277V: 8A
Maximum Load (0-10V Control)100mA sink or source

Environmental

Operational Temperature32° F – 104° F (0° C – 40° C) All load ratings are based on an ambient temperature of 25° C
Humidity5% to 95% non-condensing
Storage-4° F – 158° F (-20° C – 70° C)

Miscellaneous

Control CommunicationsZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum radio
Wallbox Volume5.75 cubic inches
Shipping Weight0.18 lb. (0.08 kg)

Available Colors

C4-TV120277-xxWH, LA, IV, BR, BL, SW, MB, BI, AU

Available Accessories

Faceplate, 1 Gang (C4-FP1-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 2 Gang (C4-FP2-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 3 Gang (C4-FP3-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 4 Gang (C4-FP4-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Color Kit (C4-CKFPDAPD-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Rocker (C4-EBDR-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU

Misc. Specs

ColorSilver
Color Finish NameAluminum
Manufacturer WarrantyLimited Warranty. See store for full details.
Product Weight0.12
WarningProposition 65 Warning for California Residents
