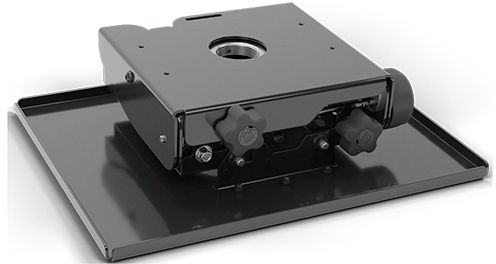

The VCT107B XL Custom Tool-free Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with laser projectors between 50-150 lbs (22.7 – 68 kg). Tool-free MicroZone adjustment ensures accurate and reliable image registration.Read More
Includes the HC107B custom interface.
Low Profile - The new VCT is 30% slimmer than the VCM mount
Lightweight - The new VCT is 25% lighter than the VCM mount
Sleek Aesthetic
Matching knobs & hardware
Custom mounts available in black only
Tool-free MicroZone+ Pitch Adjustment
The fine tune pitch adjustment has a 100:1 gear ratio for precise image alignment
Can be hand adjusted using the tool-free knob or driven with a 1/2” (13mm) socket
PrecisionSet™ technology to lock in pitch adjustments
Tool-free MicroZone™ Roll & Yaw Adjustments
Gear driven tool-free knob adjustments
Lockout nuts enable additional image lock security
General Specs | |
| Height (in.) | 22.63 |
| Weight Capacity (lbs.) | 150 |
| Mount Type | Fixed |
| Color | Black |
| Width (in.) | 9.5 |
| Outdoor Approved | No |
| Smart Compatible | No |
| Wifi Capable | No |
| Low Profile | Yes |
| Tilt | No |
| Mounting Location | Ceiling |
| Color Finish Name | Black |
Other Specifications | |
| Adjustments | Micro Roll +/- 5°, Micro Pitch +/- 20°, Micro Yaw +/- 10°, Macro Yaw 360° |
| Solution Type | Custom |
