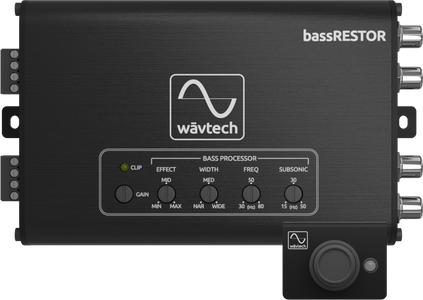

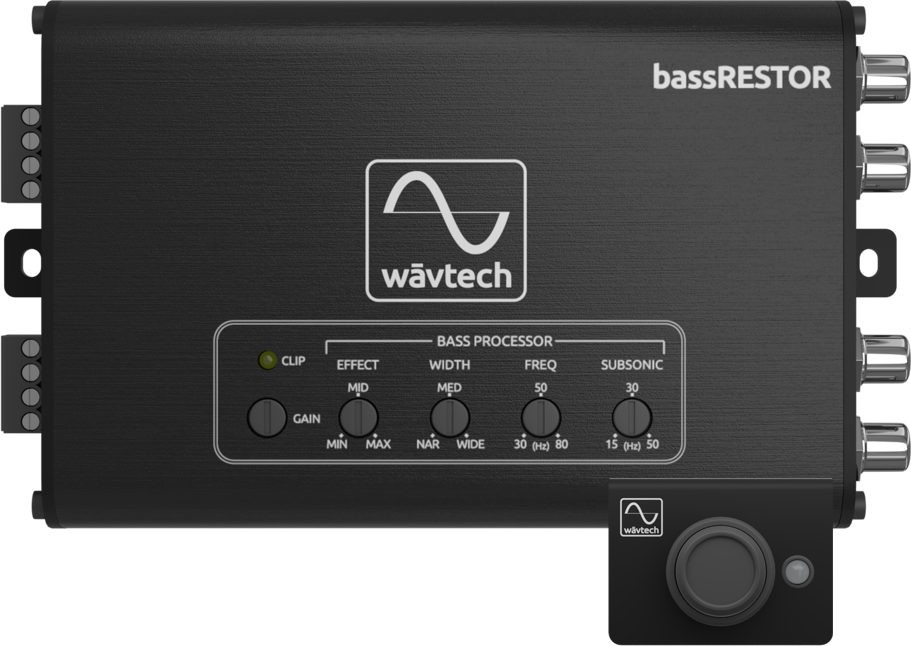

Bass Restoration Processor

Product Overview

There are certain types of music that just don’t have enough good, low bass. If you listen to classic rock, older hip-hop or Banda music, you know that something is missing. The bassRESTOR fills in the gaps and adds just the right amount of bass back into your music. Our unique Multi-Function Remote Level Control (RLC) lets you adjust the overall bass volume, the amount of bass restoration effect needed for a particular song or defeat the effect completely when no restoration is required.

The bassRESTOR has both speaker level and RCA inputs, so it integrates easily with factory or aftermarket sources. There is a variable frequency subsonic filter for fine system tuning.

bassRESTOR Features

2CH Bass Restoration Processor with Complete Tuning Control (Effect, Width, Freq) and Variable Subsonic Filter

2CH Line Driver or Line Output Converter

Includes Multi-Function Remote Level Control

Differential Balanced Inputs

Low Impedance Outputs

Variable Gain Adjustment w/Clip LED

Auto Turn-On via DC-Offset or Audio Signal Detect

Generated +12V Remote Output

OEM Load Detect Compatible

Locking Detachable Power/Speaker Terminals

Professional Grade Panel Mount RCA’s

Compact Aluminum Chassis w/Detachable Mounting Tabs

bassRESTOR Specifications

Output Voltage (Max) ----------- >10Vrms

Output Impedance --------------- <50Ω

Input Sensitivity - SPK ----------------------------- 2-20Vrms, 4-40Vrms - RCA ----------------------------- 0.5-5Vrms, 1-10Vrms

Max Input Voltage (SPK) ------- 40Vrms

Frequency Response ------------- 15Hz to >100kHz

HD+N (SPK/RCA) ---------------- <0.05% / <0.1%

S/N (SPK/RCA) --------------------- >115dBA / >114dBA

Bass Restoration - Effect -------------------------- up to +18dB - Width -------------------------- Nar-Wide - Freq ---------------------------- 30-80Hz

Subsonic Filter ---------------------- 15Hz-50Hz

Turn-On Trigger -------------------- +12V, DC-offset & Audio Detect

Generated +12V Output -------- >500mA

Chassis Dimensions --------------- 1.1”x3.5”x5.2” (29x90x133mm)
