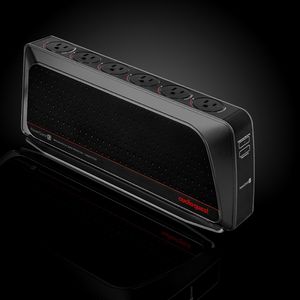

6 Outlet 4K/8K Surge Protector and Line Conditioner

Product Overview

Features

OUTLET 1

4K/8K Video Optimized Linear Filter: Best when connected to video screens, televisions, projectors, or universal players.

OUTLETS 2, 3, 4

Linear Filter: Best when connected to audio/video source components, computers, modem, or router.

OUTLETS 5, 6

High-Current: Best when connected to soundbar, power amplifier, audio/video receiver, or subwoofer.

EXTREME VOLTAGE SHUTDOWN

140VAC: Will activate the main power circuit relay to open within less than 0.25 seconds; automatically resets once the incoming power is within a safe range.

NON-SACRIFICIAL SURGE PROTECTION

Nothing to damage with repeated 6000V/3000A input surge tests, which is the maximum that can survive a building’s AC electrical panel.

LINEAR FILTER

Differential-Mode Noise Dissipation: In excess of 22dB reduction from 30kHz-1GHz. Filter linearized for dynamic (rising) line impedance with frequency from 0.05 Ohms (source) and 10 to 50 Ohm load, (system current dependent).

4K/8K Video Optimized Outlet

In addition to the Linear Filter, this outlet offers additional Noise-Dissipation technology to maximize TV performance.

SIGNAL LINE PROTECTION: CABLE/SATELLITE

INPUT CURRENT MAXIMUM CAPACITY: 15 AMPS RMS

USB CHARGE CAPACITY: 2X PORTS – TOTAL CAPACITY 3.4 AMPS

DIRECTIONALLY OPTIMIZED CONCENTRIC-GEOMETRY AUDIOQUEST POWER CORD

CONNECTED EQUIPMENT PROTECTION WARRANTY
