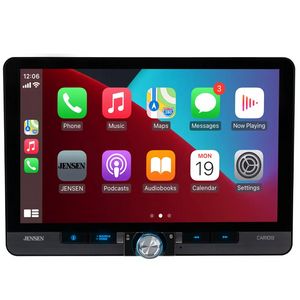

10.1″ Receiver with Wireless Android Auto & Apple CarPlay

Product Overview

10″ Extra-Large Screen

Adjusts in multiple ways, making it easy to see from any angle.

Apple Carplay / Android Auto

Dash Mount Adapter Allows for 1 DIN and 2 DIN Installation

Control key phone features directly from the receiver's touchscreen or via voice-control, significantly reducing driver distraction. With voice-control you can ask your phone to control your messages, maps, music and phone. Both Apple CarPlay and Android Auto launches upon connecting a compatible phone to the receiver via wirelessly or USB.

Bluetooth Hands-Free Calling

Safely answer and make calls from your receiver using touchscreen icons and the included microphone.

10" Touchscreen

Your LCD high resolution touch screen provides a comfortable viewing experience and keeps all your favorite presets/apps within fingers reach!

Push-To-Talk Button

Communicates via your phone's bluetooth connection to the radio. Interact with your smartphone's assistant while you drive with only a push of a button.

7 Preset EQ Curves

The 7 preset EQ curves lets you tweak the audio settings to suit your listening preferences. Switch between Pop, Jazz, Rock, Flat, Classic, Beat and User.

Backup Camera

You have the option to install a backup camera to your car receiver so you are always aware of your surroundings as you reverse.

PLAYBACK

Digital Multimedia

SCREEN SIZE

10.1"

PEAK POWER

240W (60W x 4) MOSFET

PHONE CONNECTIVITY

Android Auto, Android Auto Wireless, Bluetooth, CarPlay, CarPlay Wireless

BLUETOOTH FEATURES

Audio Streaming, External Microphone, Hands-free Calling, Phonebook Support

INPUTS

Audio / Video (Rear), Audio/Video Inputs, Front View Camera, Rear View Camera, USB (Rear), USB

USB CHARGE

2.1A

FILE PLAYBACK

FLAC, MP3

RCA OUTPUTS

3 Pair (Front + Rear + Sub)

AUDIO PROCESSING

10 Band EQ, Yes, Source Level Volume Control, 7 EQ Presets

GAIN ADJUSTMENT

Yes – Subwoofer Gain Control

CROSSOVER

Built-In Subwoofer Crossover (Off/50Hz/80Hz/120Hz/160Hz)

ILLUMINATION

6 Preset Colors

WALLPAPERS

3 Selectable

STEERING WHEEL CONTROL COMPATIBLE

Yes – Adapter Required

AM/FM RECEIVER

30 Station presets (18FM/12AM)

RCA PREAMP VOLTAGE

4V

CHASSIS DEPTH

Slim Mount (4.5")

SCREEN ADJUSTMENTS

Height, Tilt and Pivot
